CORONA
YY-5606 Middle Tower |
PC
Cases > Midi Cases > YY-5606
|
|

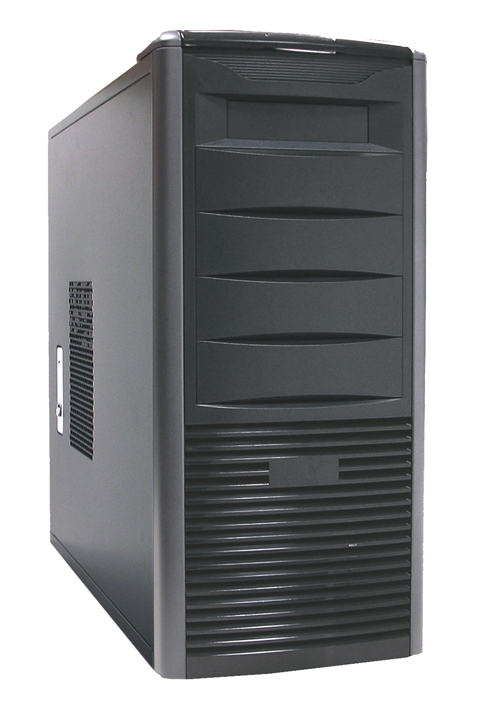

YY-5606
|
|
|
|
- Thermally Advantaged Chassis
- ATX / Micro ATX compliant
- Screw-less CDROM, HDD & Add-on cards assembly
- Screw-less lockable side panel
- U-seam designed for EMI solution
- High performance AGP card holder
- Front access USB3.0 / HD Audio
- Low acoustic level
- Press:
(1)
HT4U (2)
Channel Partner
|
|
Case
dimension
|
200mm
W x 500mm D x 440mm H |
Motherboard
configuration
|
Micro
ATX, ATX |
Drive configuration
|
4 - 5.25" exposed
1 - 3.5" exposed
5 - 3.5"(1") hidden
|
Optional
system cooling fans
|
2 *
12
cm fans for front-mounted and rear-mounted |
Net
Weight
|
9.6
kgs |
Optional
Power Supply
|
ATX
450~650W |
Options
|
Intrusion
switch |
|
|
Channel Partner
YY-5606 Feb. 2009
|
|
|
|
|
|
|
YY-5606
|
Top Side
|
Side View
|
Rear Side
|
|
|
|
|
Without Front Panel
|
Key
|
FPIO
|
Fan Grill
|
|
|
|
|
CD Rail
|
HDD Rail
|
HDD Trays
|
Card Holder
|
|
|
|
|
Rear Fan Bracket
|
Front Fan Bracket
|
Spare Parts
|
|
|
|
