YY-5708 Middle Tower
|
 PC
Cases > Midi Cases > YY-5708 |
|
YY-5708
|
|
 |
- ATX / Micro ATX compliant
- Screwless Drive Bays
- Quick Add-on -card fixing
- 4x USB2.0 / HD Audio on top of the case
- Optional Intrusion Switch for system security
|
 |
| Case
dimension
|
190mm
W x 435mm D x 440mm H |
Motherboard
configuration
|
ATX,
Micro ATX |
Drive
configuration
|
4 - 5.25" exposed
1 - 3.5" exposed
4 - 3.5"(1") hidden
|
Optional
system cooling fans
|
1
*
12 cm fans for front-mounted and 1 * 8,
9 or 12cm fan for rear-mounted |
Net
Weight
|
5.1
kg |
Optional
Power Supply
|
ATX
400W~600W |
|
| |
 |
|
●

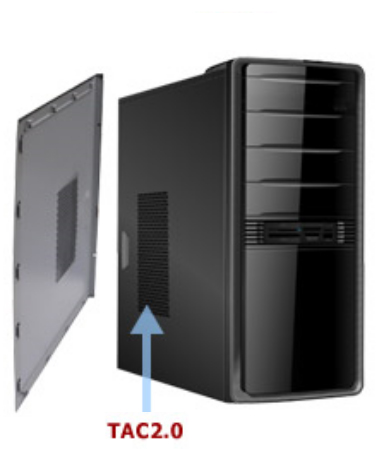

The
TAC Guide specifies a 110mmx150mm vent with an
effective open area of 60%
|
|
|
|
|
|
YY-5708
|
Rear Side
|
Side View
|
Drive Bays
|
|
|
|
|
|
|
Thumbscrew to fix HDD
|
Card Holder
|
USB Modul
|
Spare Parts
|
|
|
|
|
|
