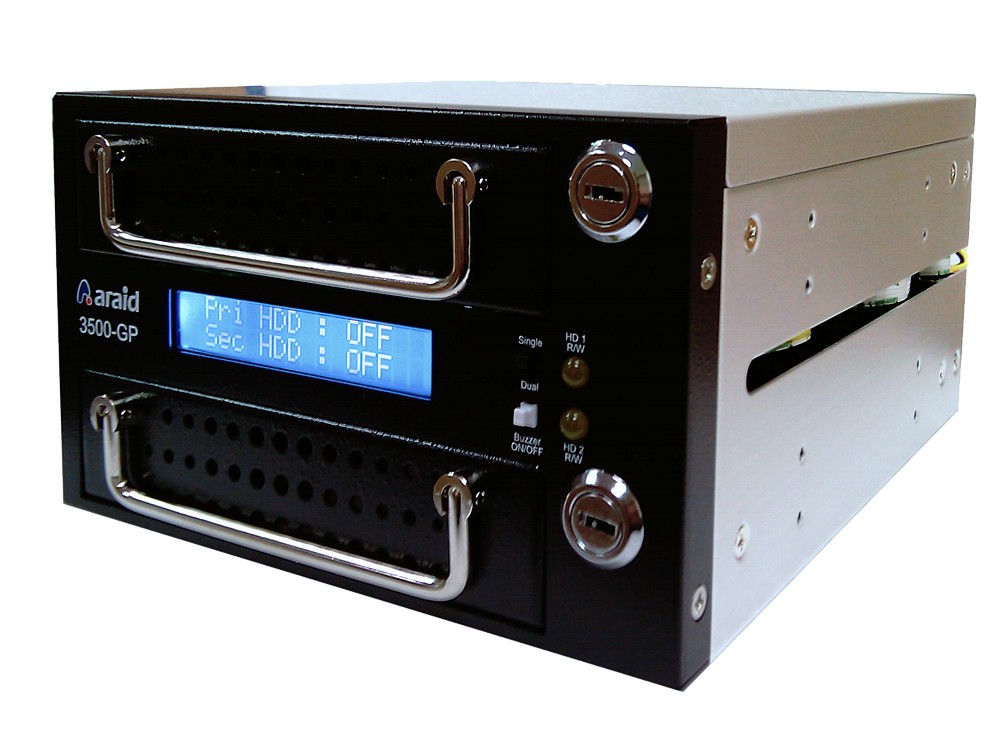

ARAID 3500
  • Online Catalog
  • Manual
    • Dynamically builds RAID 1 hard disk arrays connecting to Serial ATA or EIDE host interfaces
    • Supports 3.5" SATA II (3G) drives
    • Requires no additional software or controller cards to operate
    • Hard disk data is constantly backed up
    • Disks are hot-swappable for data backup and disk replacement
    • Allows easy high speed disk duplication
    • Supports any size drive including 2 Terabyte drives
    • SNMP Agent for enterprise network management
    • Quiet forced air cooling
    • LCD display for system and hard drive status
    • LED indicators and audible alarm
    Construction Aluminium alloy
    RAID Level
    1 or 0
    PC Interface
    3,5" HDD SATA II. (Optional: IDE or SCSI Bridge)
    Driver No driver required
    Failed HDD Hot Swap Yes, allows users to replace hard disk while PC is operating.
    Mirror On Demand Optional Yes
    LCD screen Yes. Displays status of disks, including Fan, Temperature, and Rebuilding Percentage(%) status.
    LED Indicator Yes, shows hard disk READ or WRITE status.
    Hard Disk Fail Alert Alerts with audio, LCD, e-mail
    OS support WIN XP, WIN7, Linux: Red Hat, Fedora, SUSE, Novell: NetWare
    Built In Powerful Fan 60mm fan
    Space Required 2 x 5.25"
    Connectors Host: SATA, optional IDE
    SNMP management Yes
