YY-C581 Mini ITX Tower
PC Cases > Mini ITX Cases > YY-C581

  • Online Catalog
  • Manual
    • Free zone above the core area
      keep processor cool, support mainstream platform; ATOM boards and next generations
    • Flexible Drive Cage, fulfill various applications and cost effective
    • Convertible power supply
    • Various applications
    • Easy use PC, Kiosks, POS systems, networking devices, health monitoring systems
    • Digital offices
    • Thin clients, Desktop PCs, sub-systems, compact server appliances
    • Digital home
    • Entertainment, HTPC, home server appliances, internet download center
    • Press: (1) IT-Business, (2) ChannelPartner, (3) HT4U
    • Review: Casecenter
    Case dimension 280 D x 250 W x 85H (mm) 6.3L
    Motherboard configuration
    Mini ITX

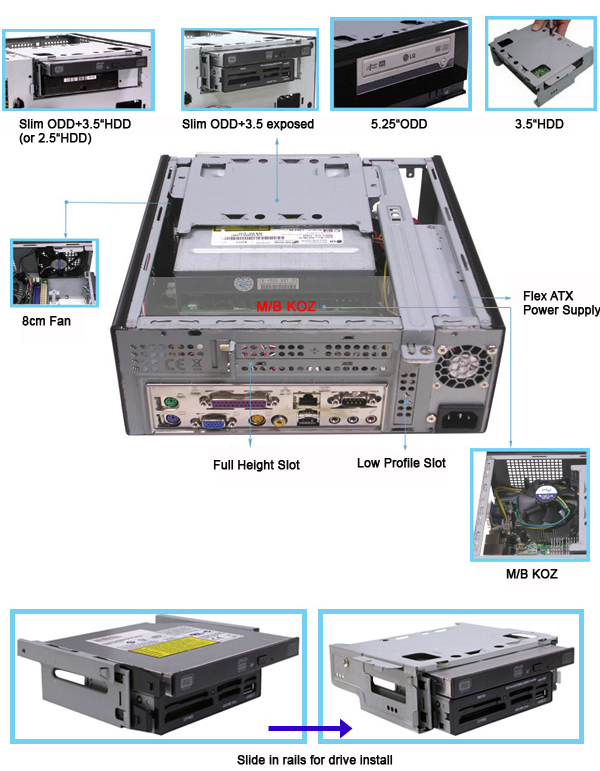

    Drive configuration
  • 1 x Slim CDR, 1 x 3.5" exposed, 2 x 2.5" HDD or
  • 1 x Slim CDR, 3 x 2.5"HDD or
  • 1 x 3.5" HDD, 2 x 2.5" HDD or
  • 1 x 5.25" ODD (if Southbridge or passive heatsink is lower than    memory), 2 x 2.5"HDD
  • Optional Fans 1 x 8cm fan
    Slots 1 x Full Height PCI slot (Optional riser card with flexible cable need), 1x Low Profile
    Front Access Power Switch, Power LED/HDD LED, 2 x USB2.0, HD Audio
    Power Supply 150W FlexATX PSU
    Net Weight/Gross Weight 1.7kg/ 2.1kg
    Options PSU Cover Bracket

    M/B KOZ (Keep Out Zone): Means the component height limitation on board, including RAM, Processor and chips' FHS (Fan and Heat Sink)
    57mm KOZ covering Intel boxed FHS
    34mm KOZ means the highest component on board is about the same height as RAM (DDRII, DDRIII)

    YY-C581 Tower
    YY-C581BK Desktop
    Open Panel
    Rear Side
    Top View
    FPIO Modul
    Spare Parts
