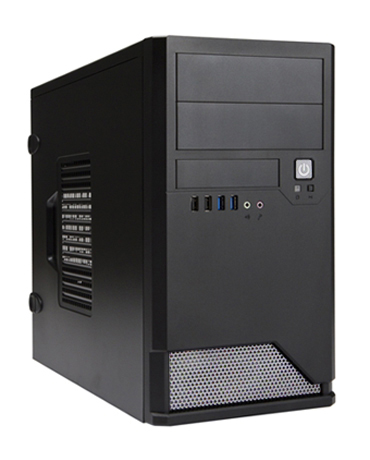

IW-EM048 Inwin Mini Tower
PC Cases > Micro Cases > IW-EM048

IW-EM048


  • Online Catalog
    		•

    • Qualified for TAC 2.0, a mass ventilation hole side panel design strengthens thermal efficiency and cools down the entire system
    • Tool-Free Side Panels, ODD Bays and FDD Bays
    • Stamped Motherboard Support - no MB standoffs installation required, for faster MB installation
    • Best performed Steel
    • Folded edges for safety installation — no sharp edges or debris
    • USB 3.0 x 2, USB 2.0 x 2, HD Audio
    • Padlock Loop / Kensington Slot
    Case dimension 190mm W x 380mm D x 350mm H
    Motherboard configuration MicroATX
    Drive configuration
  • 2 - 5.25" exposed
  • 1 - 3.5" exposed
  • 2 - 3.5" hidden or
  • 1 - 2.5" hidden and 1 - 3.5" hidden
    		•
    Optional system cooling fans 1x 9cm or 1x 12cm fan for rear-mounted, 1x 9cm front-mounted
    Net Weight 4kg
    Optional Power Supply ATX 450~550W

    IW-EM048
    Rear Side
    Side View
    Tool Free Drive Bays
    USB 3.0 and HDD Drive Bays
    PCI
    Inside
    Cage for Extra 3.5” x 2 or 3.5” x 1 + 2.5” x 1
