GHI-107A Guanghsing
19"/1U Rack |
 Rackmount
Cases > GHI-107A |
|

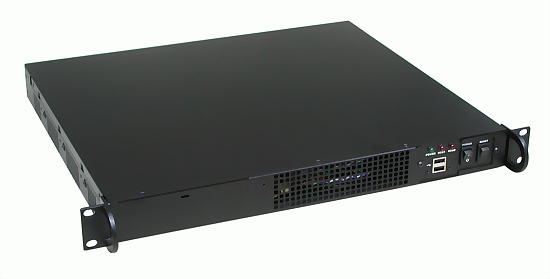

GHI-107A
|
|
 |
- Guanghsing 19" 1U Rackmount Case
- 1 Horizontal PCI Slot (With Riser Card)
- 2x USB
- Power ON/OFF, System Reset
- LEDs for Power ON/OFF, HDD Activity
|
 |
| Case
dimension |
483mm W x
386mm D x 44mm H |
| Motherboard
configuration |
ATX
(Max. 12" x 10.5") |
|
Standard I/O Shield |
Intel DP965LT |
| Drive
configuration |
1 - Slim 5.25"
1 - 2.5" HDD (for 12" x 10.5") or
1 - 3.5" HDD (for 12" x 9.6")
|
| System
cooling fans |
3x (40 x 28mm
= 15.3CFM ea.)
|
|
Riser Card |
GHP-R0110 |
| Gross
Weight |
7.3kgs/16.1lbs |
| Optional
Power Supply |
P1A-6250P (1U Size Single up to
400W), Max Depth 190mm |
| Optional
Kits |
Telescopic
Sliders,
Riser Card
|
|
| |
 |
|
|
|
| |
|
Front Side
|

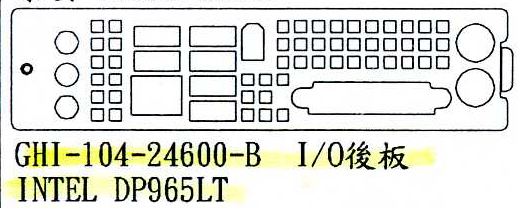

GHI-107A Front I/O
|
Rear Side
|
|
|
|
|
|
|
|
|
Front Side
|
GHI-107A Rear I/O
|
Rear Side
|
|
|
|
|
