GHI-254 Guanghsing
19"/2U Rackmount |
 Rackmount
Cases > GHI-254 |
|
GHI-254
|
|
 |

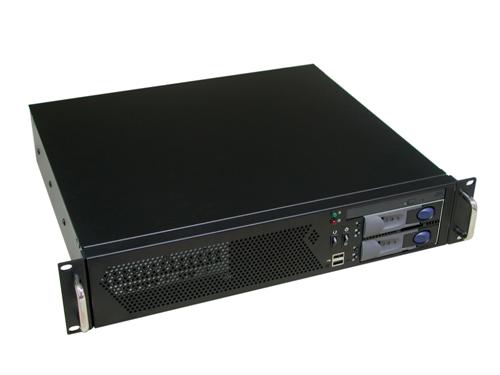

- Guanghsing 19" 2U Rackmount Case
- 4 Low Profile Slots
- 2x USB
- Power ON/OFF, System Reset
- LEDs for Power ON/OFF, HDD Activity, LAN
|
 |
| Case
dimension |
483mm W x
383mm D x 88mm H |
| Motherboard
configuration |
Micro ATX
(Max. 9.6" x 9.6") |
| Drive
configuration |
1 - Slim 5.25"
2 - 3.5" HDD
2 - 3.5" Swappable Trays
|
| System
cooling fans |
1x (80mm
= 42.5CFM ea.) |
| Gross
Weight |
9.5kgs/21.0lbs |
| Optional
Power Supply |
HG2-6400P
(PS/2
Single up to 400W), Max Depth 150mm |
| Optional
Kits |
Telescopic
Sliders |
|
| |
 |
|
|
|
|
|
|
Front Side
|
Top View
|
Rear Side
|
|
|
|
|
|
|
