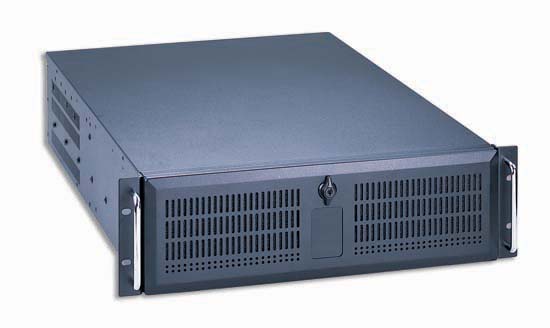

GHI-312 Guanghsing 19"/3U Rackmount
Rackmount Cases > GH-312


GHI-312
  • Online Catalog
  • Structure

  •
    • Guanghsing 19" 3U Rackmount Case
    • 7 Slots
    • 2x USB
    • Power ON/OFF, System Reset
    • LEDs for Power ON/OFF, HDD Activity
    Case dimension 483mm W x 650mm D x 133mm H
    Motherboard configuration EATX  (Max. 12" x 13") SSI EEB 3.0
    Drive configuration
  • 2 - 5.25"
  • 1 - 3.5" FDD
  • 7 - 3.5" HDD
  • System cooling fans 5x (92mm = 51CFM ea.), 1x (60mm = 23.5CFM ea.)
    Gross Weight 17.2kgs/37.9lbs
    Optional Power Supply P2G-6510P  (2U Single up to 700W) or R2G-5500V (2U Redundant up to 500W) (Rear Installation), Max Depth 300mm
    Optional Kits Telescopic Sliders

    Front Side
     Top View
    Rear Side
