GHI-313 Guanghsing 19"/3U
Rackmount |
 Rackmount
Cases > GHI-313 |
|
GHI-313
|
|
 |

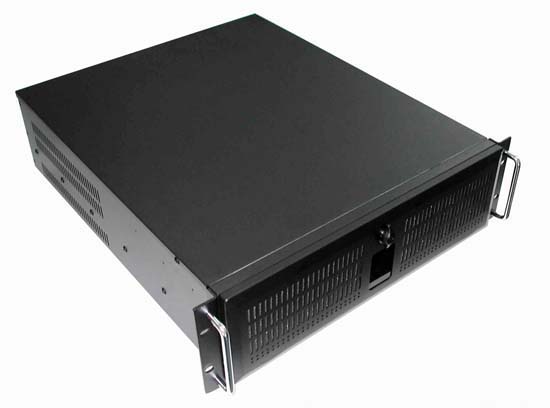

- Guanghsing 19" 3U Rackmount Case
- 7 Slots
- 2x USB
- Power ON/OFF, System Reset
- LEDs for Power ON/OFF, 2x HDD, Fan, 3x LAN Activity
|
 |
| Case
dimension |
483mm W x
526mm D x 133mm H |
|
Motherboard configuration |
ATX (Max.
12" x 10.5") |
| Drive
configuration |
2 - 5.25"
1 - 3.5" FDD
7 - 3.5" HDD
|
|
System cooling fans |
2x (92mm =
51CFM ea.), 2x (60mm = 23.5CFM ea.) |
|
Gross Weight |
14.6kgs/37.9lbs |
|
Optional Power Supply |
P2G-6510P (2U Single up to 600W) or
R1S2-5300V4V (2U Redundant up to 500W) (Rear
Installation with special bracket), Max Depth 250mm |
|
Optional Kits |
Telescopic Sliders |
|
| |
 |
|
|
|
|
|
|
Front Side
|
Top View
|
Rear Side
|
|
|
|
|
|
|
