IW-MS04

Home Server / NAS Gehäuse

  • Online Katalog
  • Bedienungsanleitung

  •
    • Mini-SAS Backplane (6GB/s unterstützt)
    • Einzigartiges Server Design, insbesondere für kleine Büros
    • Flex ATX Netzteil wird unterstützt
    • Slim ODD wird unterstützt
    • Vorderseite: USB 3.0 x 2 Ports
    Abmessungen 275mm B x 210mm T x 230mm H
    Formfaktor Mini ITX  (M/B Cooler Max. 65 mm)
    Sicherheit Intrusion Switch, Schloss an Fronttür
    Laufwerkseinschübe
  • Extern: Slim ODD x 1, Hot-Swap 3.5" x 4 or 2,5" x 4
  • Intern: 2.5" x 2 (Optional: eins)
  • Gehäusematerial SGCC
    Plastik Materialtyp ABS-HB
    Metalldicke 0.8mm
    Lüfter 120 x 25mm PWM Lüfter
    Slots Low profile Slot x 1
    Frontblende An/Aus Knopf, System reset Knopf, USB 3.0 x 2
    Netto-/Bruttogewicht 5.31kg/6.33kg
    Netzteil FlexATX 265W PSU (bereits eingebaut)

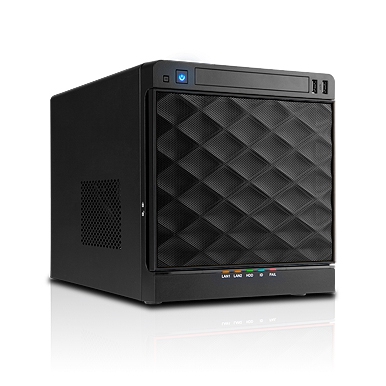

    Vorderseite

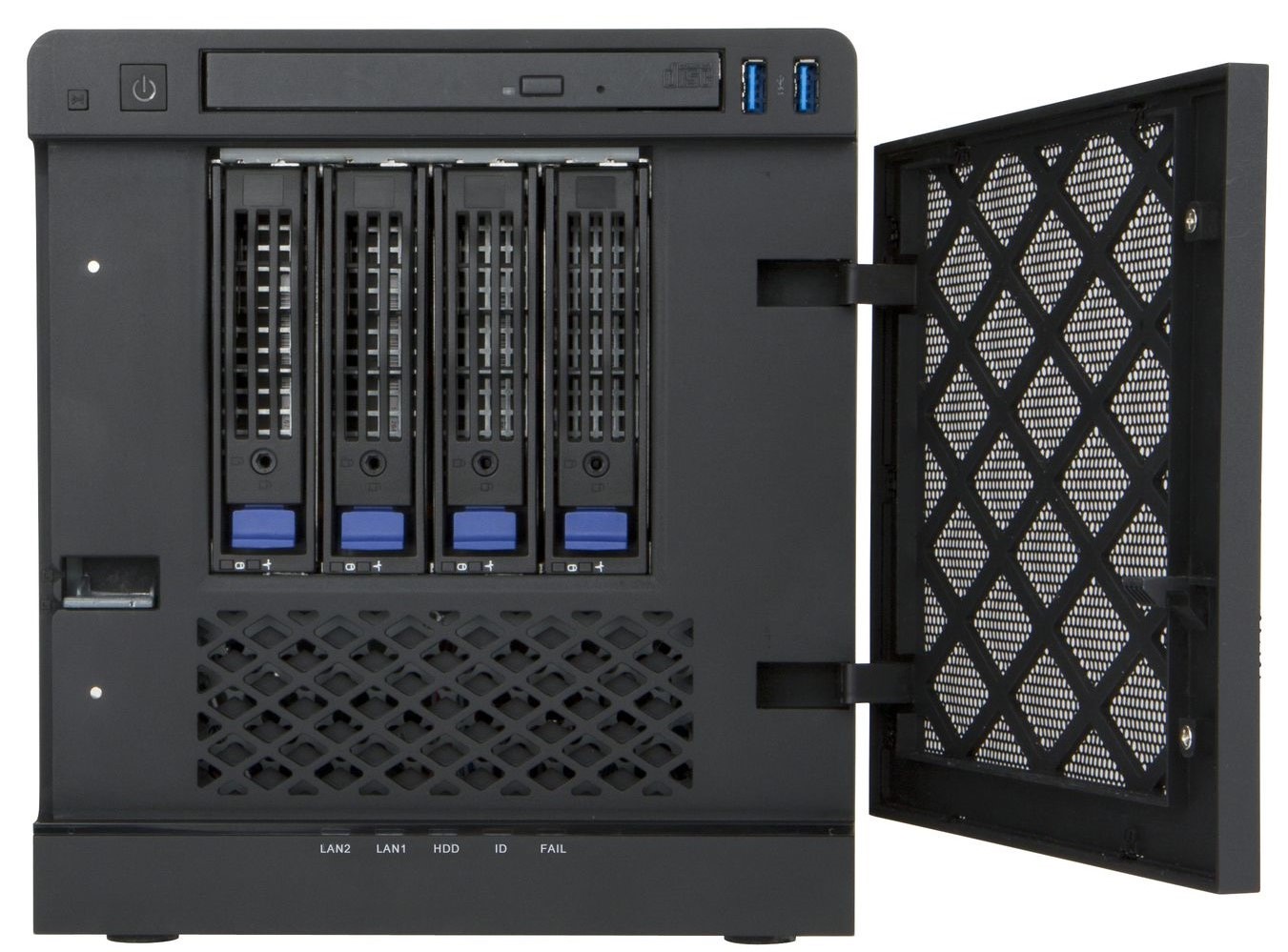

    Vorderseite geöffnet

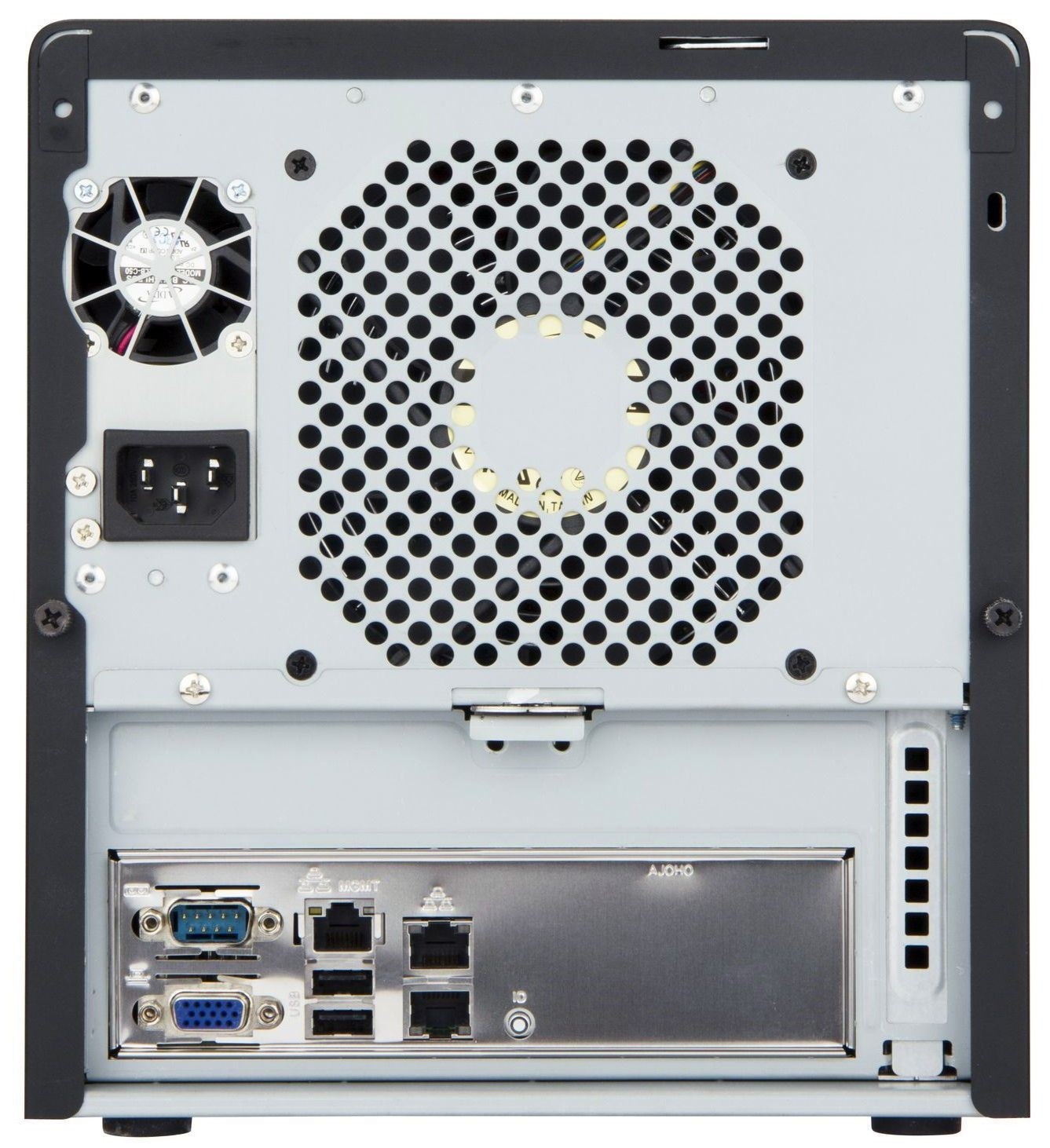

    Rückseite

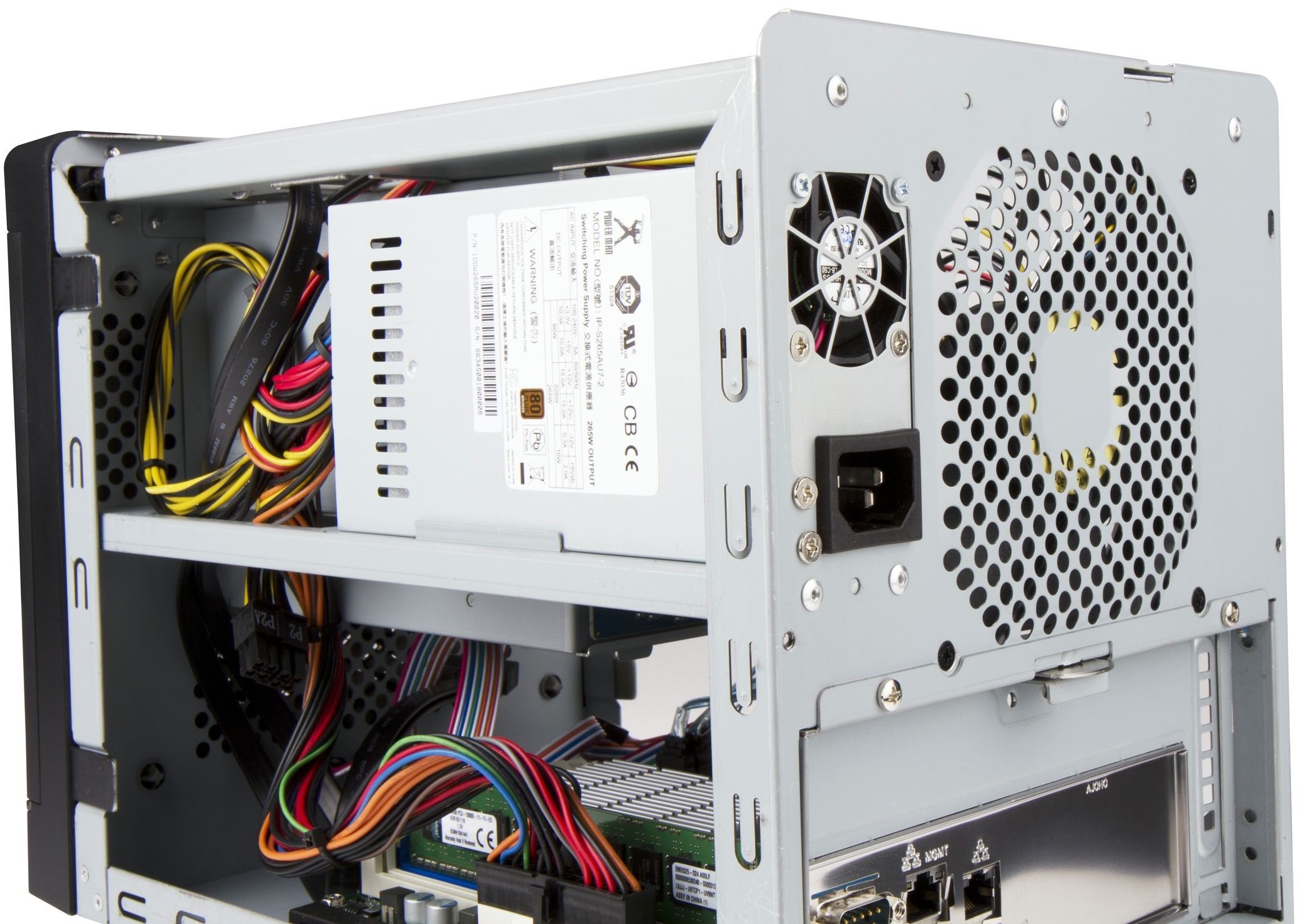

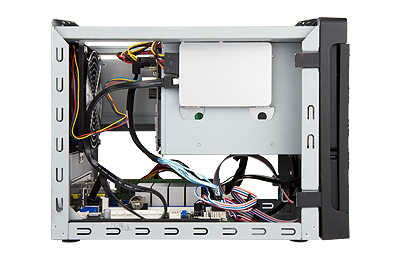

    Innenansicht

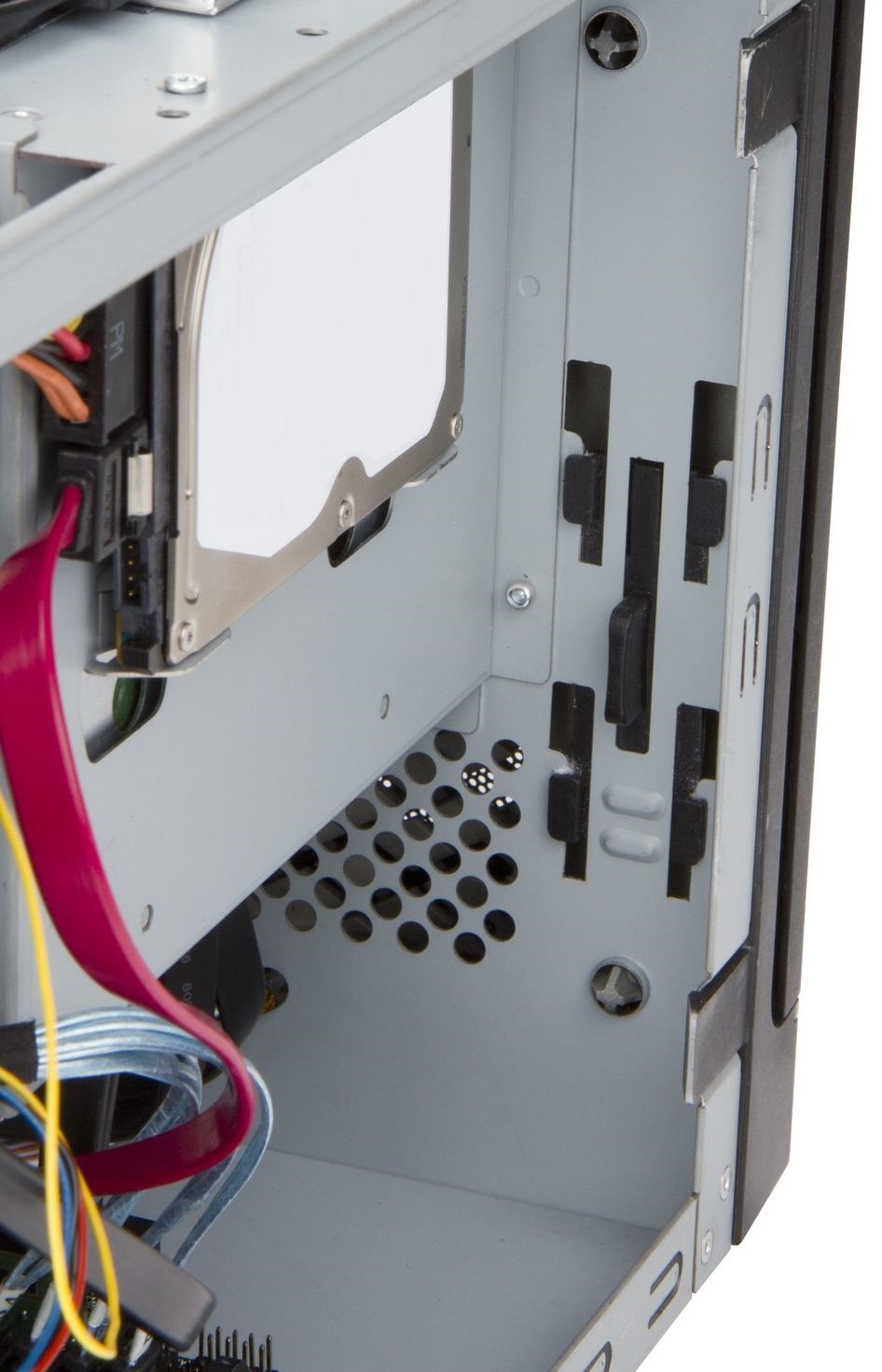

    2.5" HDD für BS
    Blendenschloss
    120mm PWM Lüfter
    Hauptplatinentablett für eine einfache Wartung
