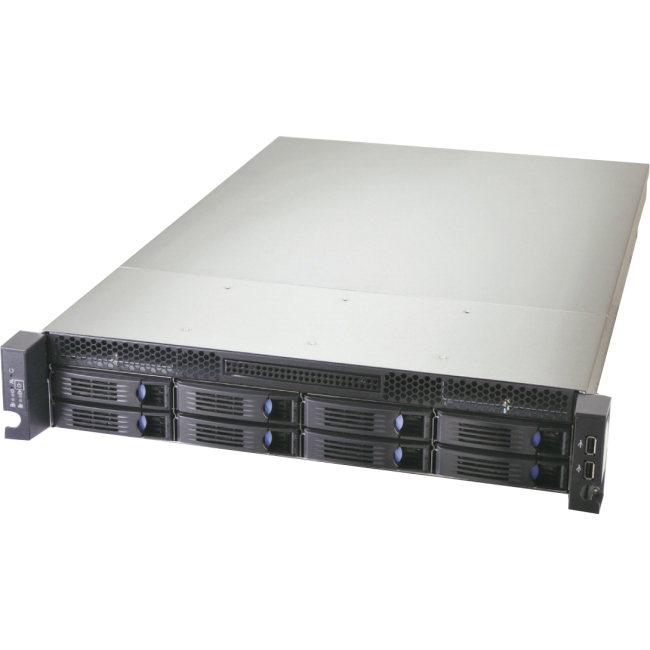

RM235
|
|
|
- Chenbro 2U Modular Multi-function Computing & Storage Chassis
- Unterstützt Motherboards bis 12" x 13"
- Modulares 8-, 12-, und 24-fach 3.5" HDD Laufwerk mit 6Gb/s mini-SAS Backplane
- 3 x 80mm Hot-swap Lüfter mit Anti-vibration Mechanismus
- Unterstützt 2U Single and 1+1 redundantes Netzteil
|
|
Abmessungen |
446mm B x 699mm T x 88mm H |
Formfaktor |
EATX (Max. 12" x 13") SSI EEB 3.0 |
Prozessor |
Intel / AMD DP Quad |
Support Backplane |
1 x 8-port, 1 x 12-port oder 3 x 8-port 6Gb/s mini-SAS Backplane |
Sicherheit |
Intrusion Switch |
Laufwerkseinschübe |
RM23508: 8 x 3.5" Hot-swap HDD, 1 x Slim ODD, 2 x 3.5"HDD
RM23512: 12 x 3.5" Hot-Swap HDD
RM23524: 24 x 2.5" Hot-Swap HDD |
Gehäusematerial |
SGCC |
Metalldicke |
1.2mm |
Lüfter |
3 x 80mm (T=38mm), PWM, Hot-swap |
Expansion Slot |
6 Low Profile Slot oder 3 x Full Height |
Frontblende |
Power On/Off, System Reset, Alarm Reset, Power LED,
1 x HDD Activity, 2 x LAN Activity LED, Event LED, 1 x Fan Failure & Overhead, 2 x USB 2.0 |
Netto-/Bruttogewicht |
13.8kg/17.6kg |
Optionales Netzteil |
2U Single
P2G-6510P oder 1+1 Redundant R2G-5600V4V |
Optionen |
SFF-8087 to SFF-8087, 40mm Lüfter,
26" Schienen
|
|
|
|
|
|
|
|
RM23508
|
RM23512
|
RM23524
|
Rückseite
|
|
|
|
|
Control Panel
|
Hot swap Lüfter
|
2 x USB2.0
|
|
|
|
|
|
|
|
|
