YY-R44500 Neues 4U Rackmount
19" Gehäuse > YY-R44500

YY-R44500
  • Online Catalog
  • Test report

  •
    • Yeong Yang 19" 4U Rackmount
    • Kompatibel für ATX M/B (12" x 10,5")
    • Anti-Vibrations-Gehäuse
    • Optionale PCI Karten
    • 2 x 80mm Lüfter an der Rückseite, 1 x 120mm optionaler Lüfter an der Vorderseite
    Abmessungen ohne Blende:               430mm B x 176mm T x 446mm H
    mit optionaler Blende: 430mm B x 176mm x T x 469mm H
    Formfaktor ATX (Max. 12" x 10.5)
    Prozessor Intel / AMD DP Quad
    Sicherheit Intrusion Switch, Schloss an Fronttür
    Laufwerkseinschübe
  • 3 - 5.25" ODD
  • 1 - slim ODD
  • 4 - 3.5" intern
  • 1 - 2.5" HDD
  • Gehäusematerial SGCC
    Plastik Materialtyp ABS-HB
    Metalldicke 1.2mm
    Lüfter 22 x 80mm Größe, 1 x 80mm front (optional), 1 x 120mm (optional)
    Slots 7 Full Height
    Frontblende Power Switch, Reset Switch, 1 x Power LED, 1 x HDD LED, 2 x LAN LED, 2 x USB 2.0 (Standard) oder 2 x USB 3.0 (optional)
    Netto-/Bruttogewicht 9.2kg/11.2kg
    Optionales Netzteil 450-1000W (PS/2) oder MRW-5450V (Mini Redundant)
    Optionen SK32303 (2 x ODD bays to 3 x 3.5" hot-swap HDD bays), SK51201 (3.5" bay to 2 x 5.25" hot-swap HDD bays), 22" Schienen, 80mm Lüfter, Fußgestell

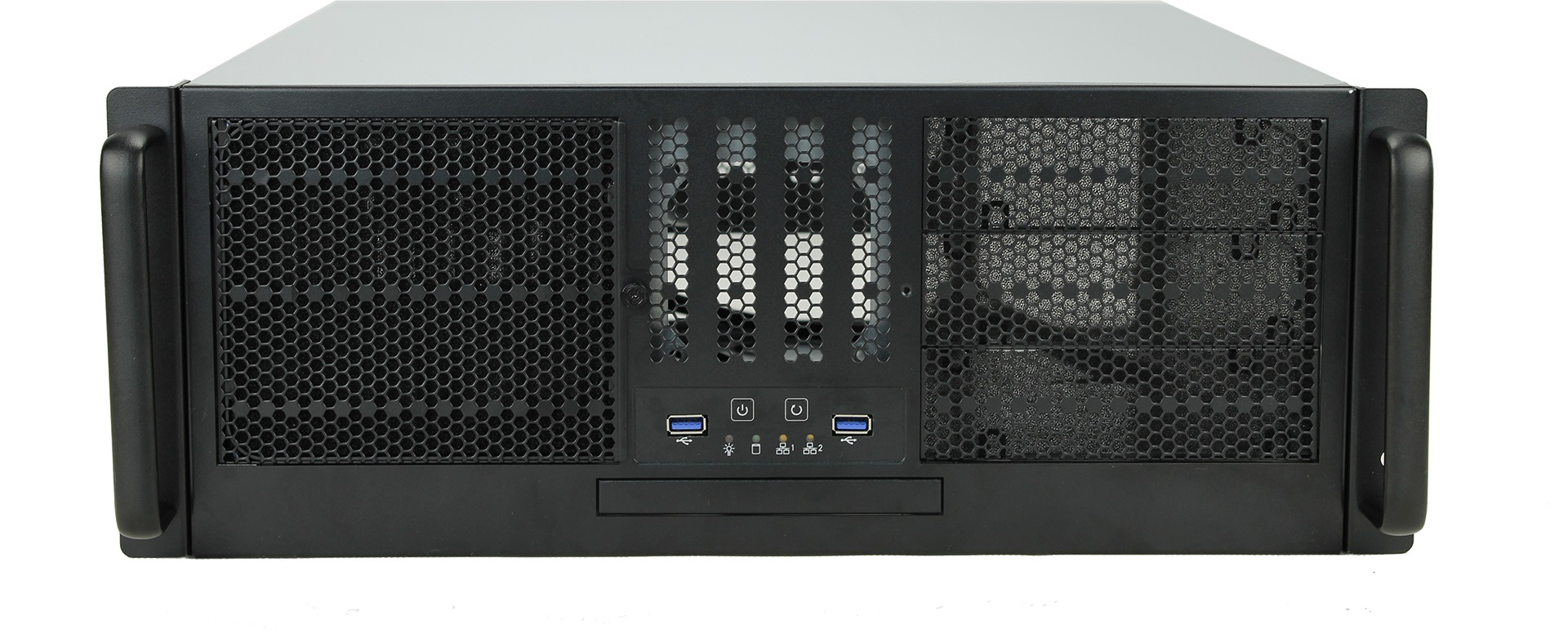

    Vorderseite

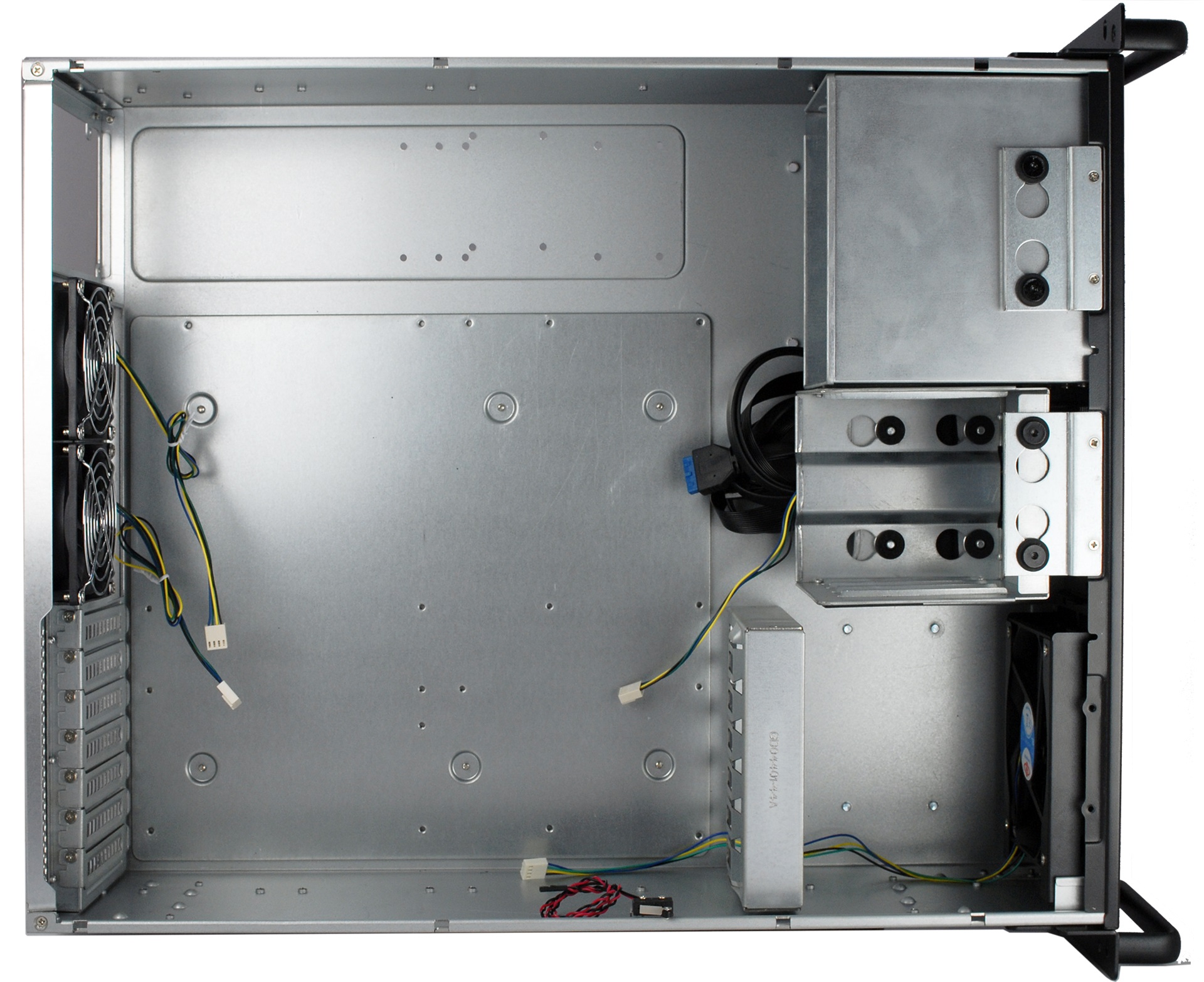

    Innenansicht

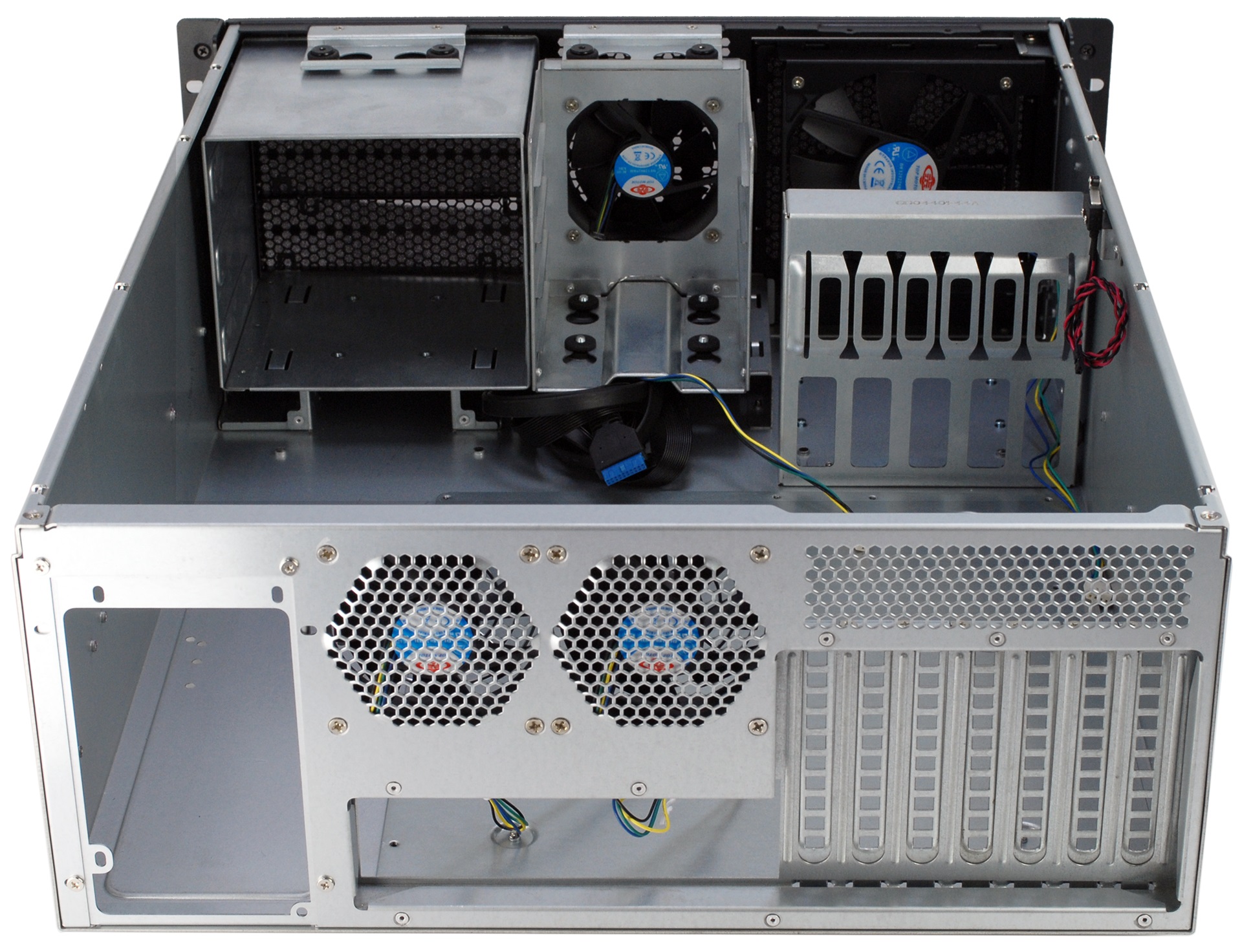

    Rückseite

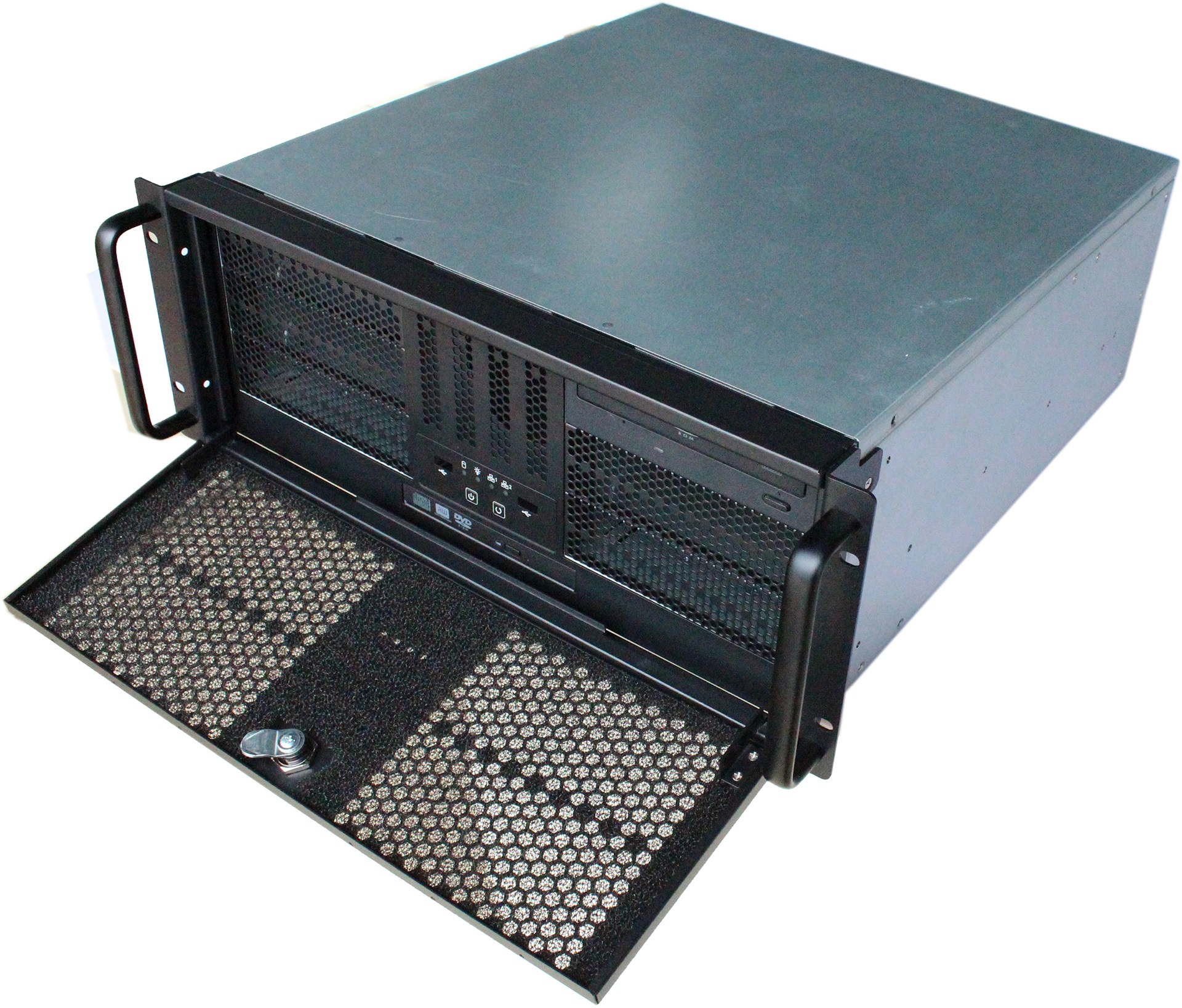

    Vorderseite mit Tür
