Seasonic SS-250SU Flex ATX |
 Peripheriegeräte
> Netzteile > Seasonic > SS-250
|
|

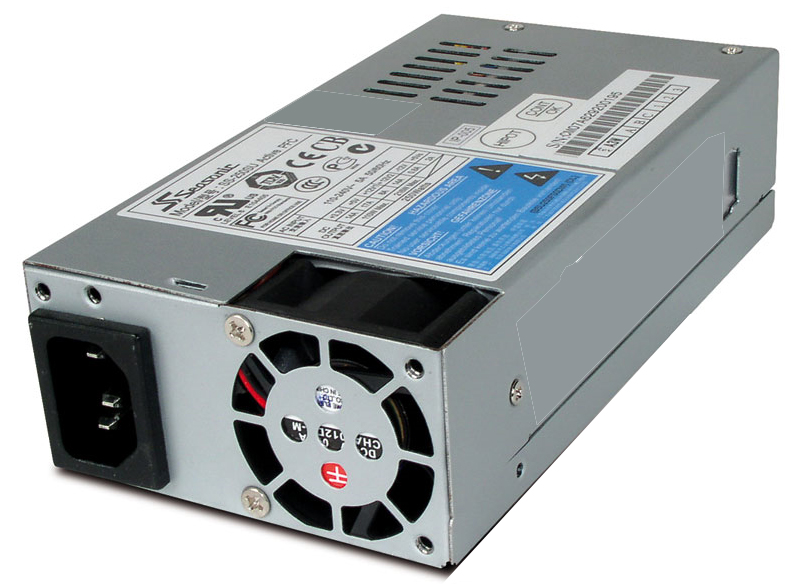

SS-250SU
|
|
 |
- Flex ATX Formfaktor
- 80Plus® Bronze
- 250W Active PFC
- Full Range
- 4cm Lüfter
- Abmessungen : 81.5mm B x 150mm T x 40.5mm H
- Optional: SATA Kabel
|
 |
|
|
|
|
|
|
|
1 x 24PIN Power
|
1 x Floppy
|
2 x Molex
|
2 x 4 PIN P4
|
2 x SATA
|
|
 |
 |
ENVIRONMENTAL |
| |
MTBF: 100K hours at 25°C
Efficiency: >80% min.
Hold-up time: 12.0ms
Frequency : 50-60Hz
Dielectric strength: input/output 1800
VAC for 1 sec., input to frame ground
1800VAC for 1 sec.
|
| VOLTAGE |
+3.3V
|
+5V
|
+12V1
|
+12V2
|
-12V
|
+5Vsb
|
| MAX. LOAD |
14.0A
|
17.0A
|
8.0A
|
14.0A
|
0.8A
|
2.0A
|
Remarks:
* COMBINED +3.3VDC & 5VDC maximum power |
|
 |
|
|
|
|
|
|
