Pedestal

IW-MS04
Home Server / NAS application Chassis > IW-MS04

IW-MS04

Home Server / NAS application Chassis


  • Online Catalog
  • Manual
    		•

    • Mini-SAS Backplane (6GB/s supported)
    • Unique server design ideal for small office
    • Flex ATX power supply supported
    • Slim ODD supported
    • Front access USB 3.0 x 2 Ports
    Case dimension 275mm W x 210mm D x 230mm H
    Motherboard configuration Mini ITX  (M/B Cooler Max. 65 mm)
    Security Intrusion Switch, Padlock Loop, Kensington Lock
    Drive configuration
  • External: Slim ODD x 1, Hot-Swap 3.5" x 4 or 2,5" x 4
  • Internal: 2.5" x 2 (One for option)
    • Metal Material SECC
    Plastic Material Type ABS-HB
    Metal Thickness 0.8mm
    System cooling fans 120 x 25mm PWM Cooling fan
    Expansion Slot Low profile Slot x 1
    Front Panel Power Switch, System reset, USB 3.0 x 2
    Net Weight/Gross Weight 5.31kg/6.33kg

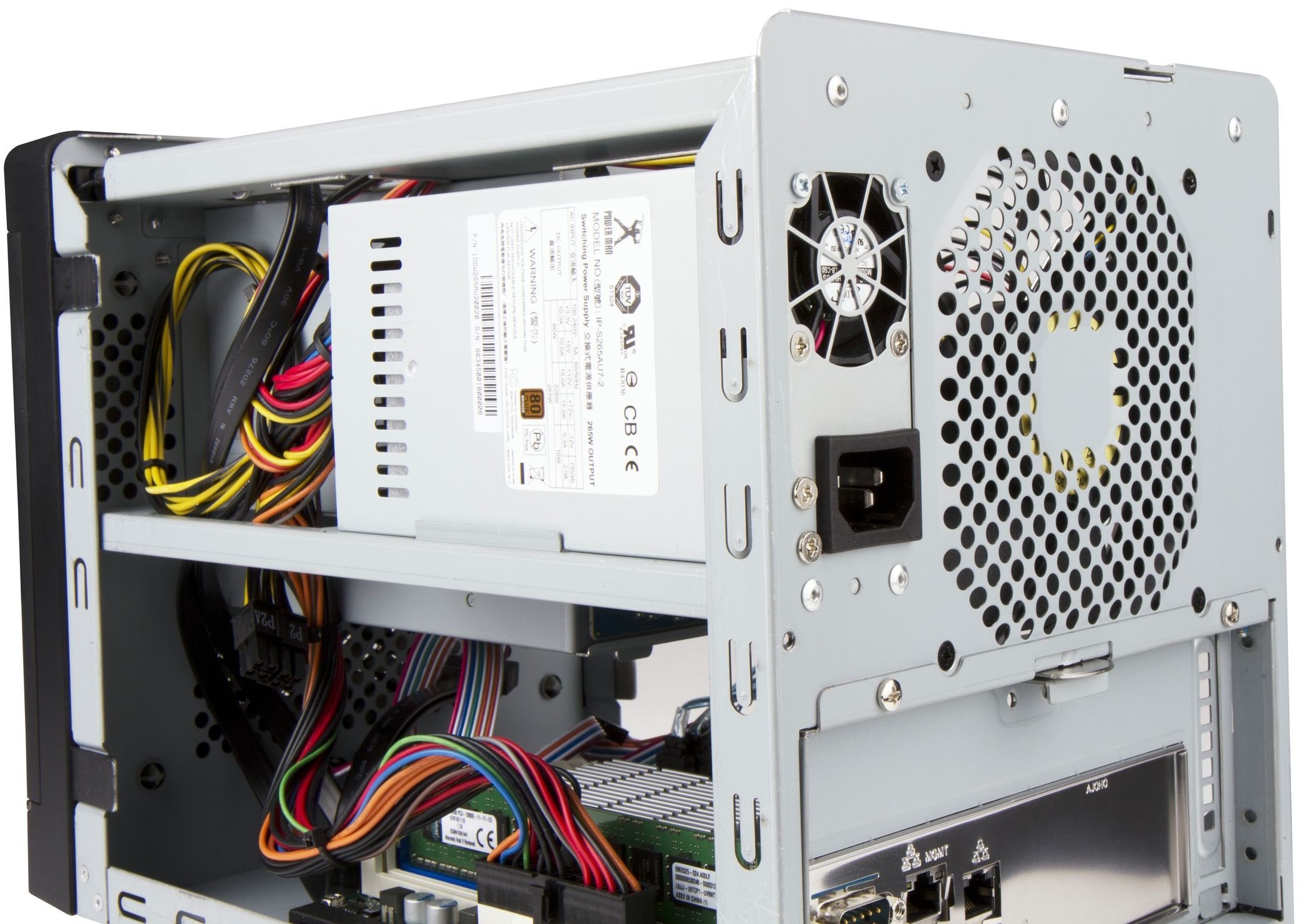

    Power Supply FlexATX 265W PSU built-in

    Front

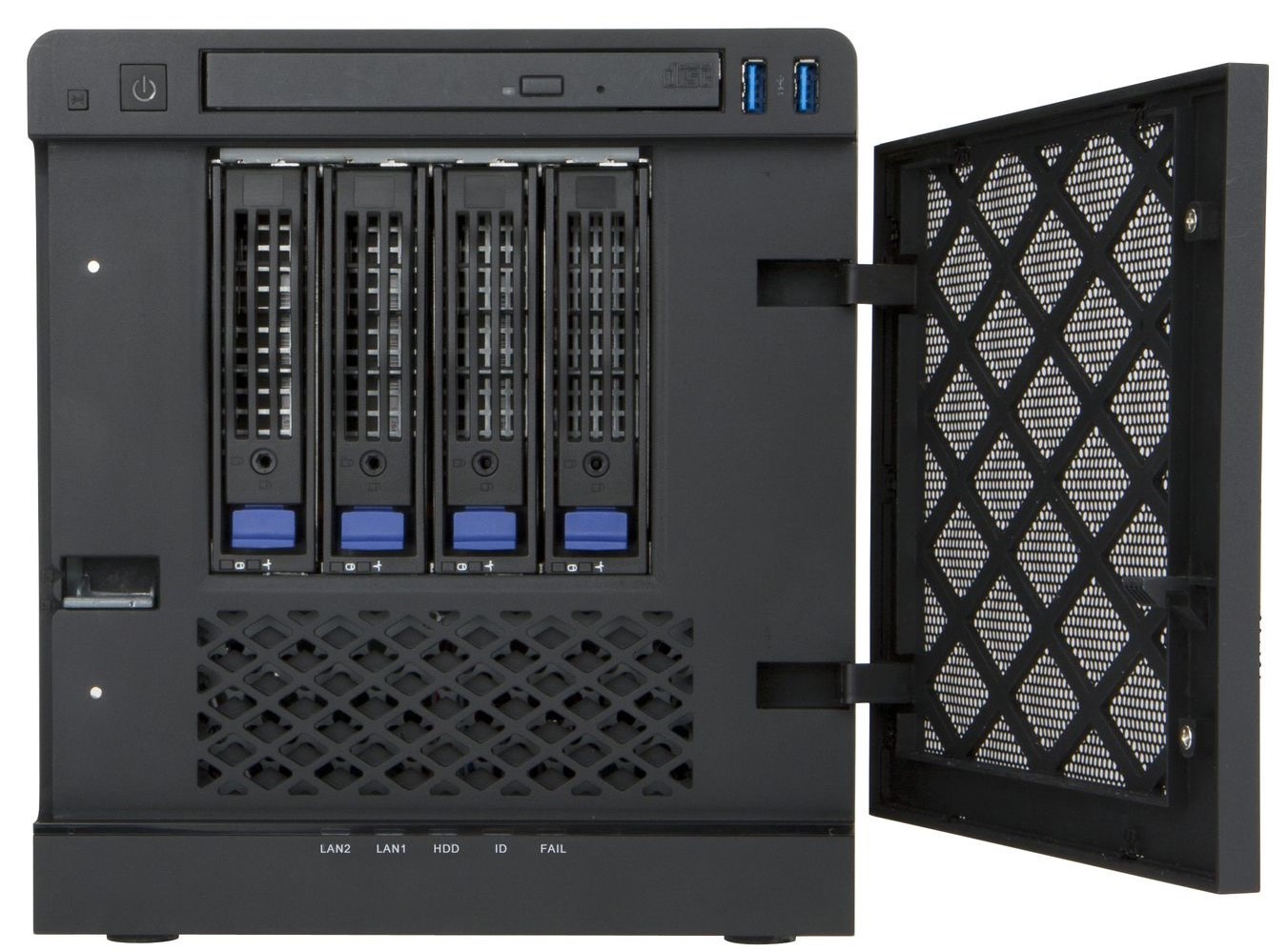

    Front View

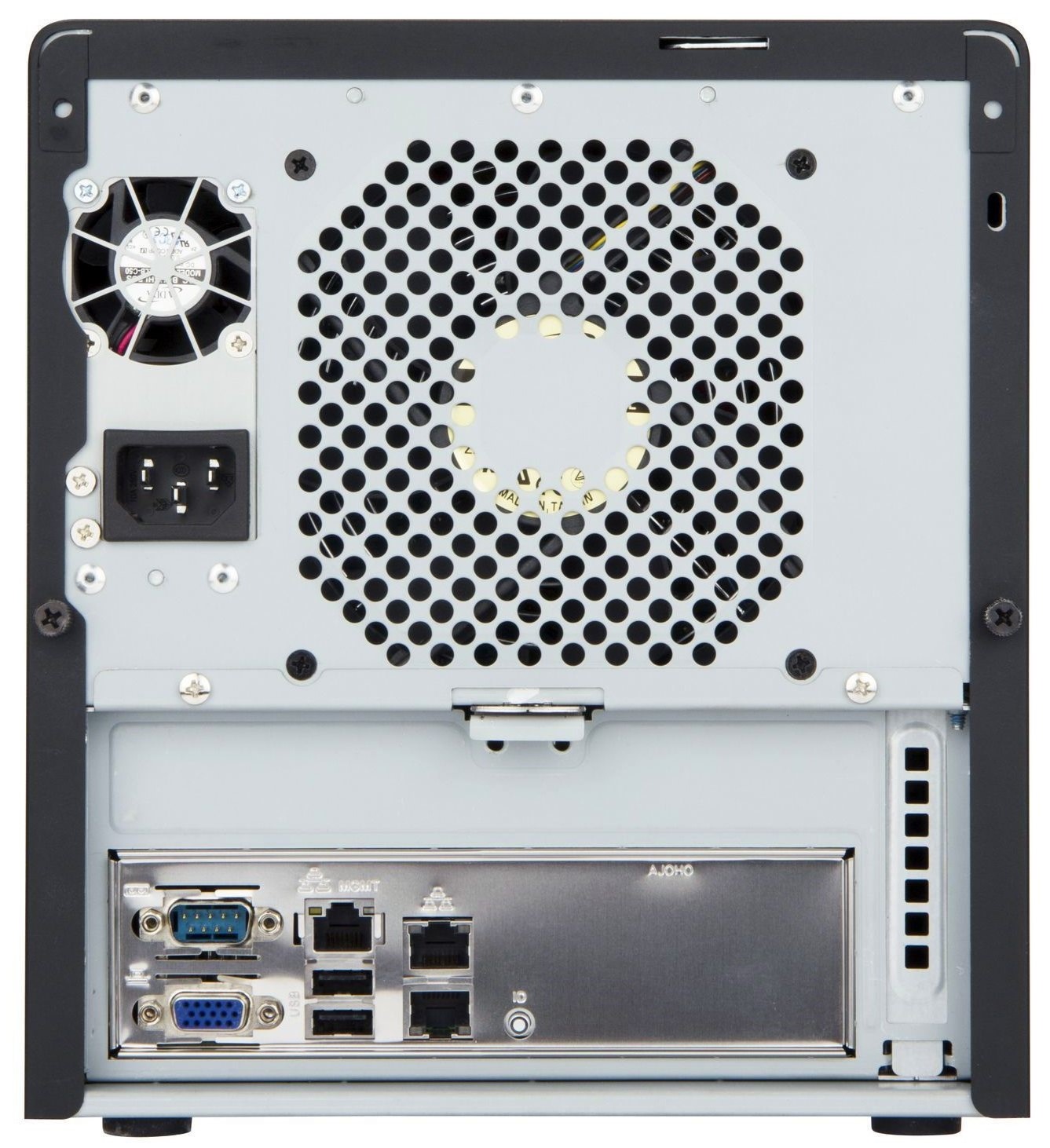

    Rear View

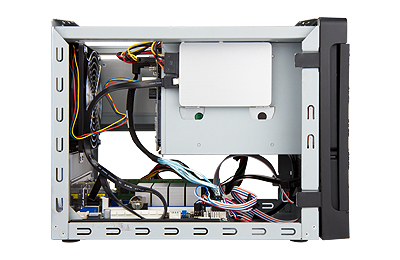

    Inside View

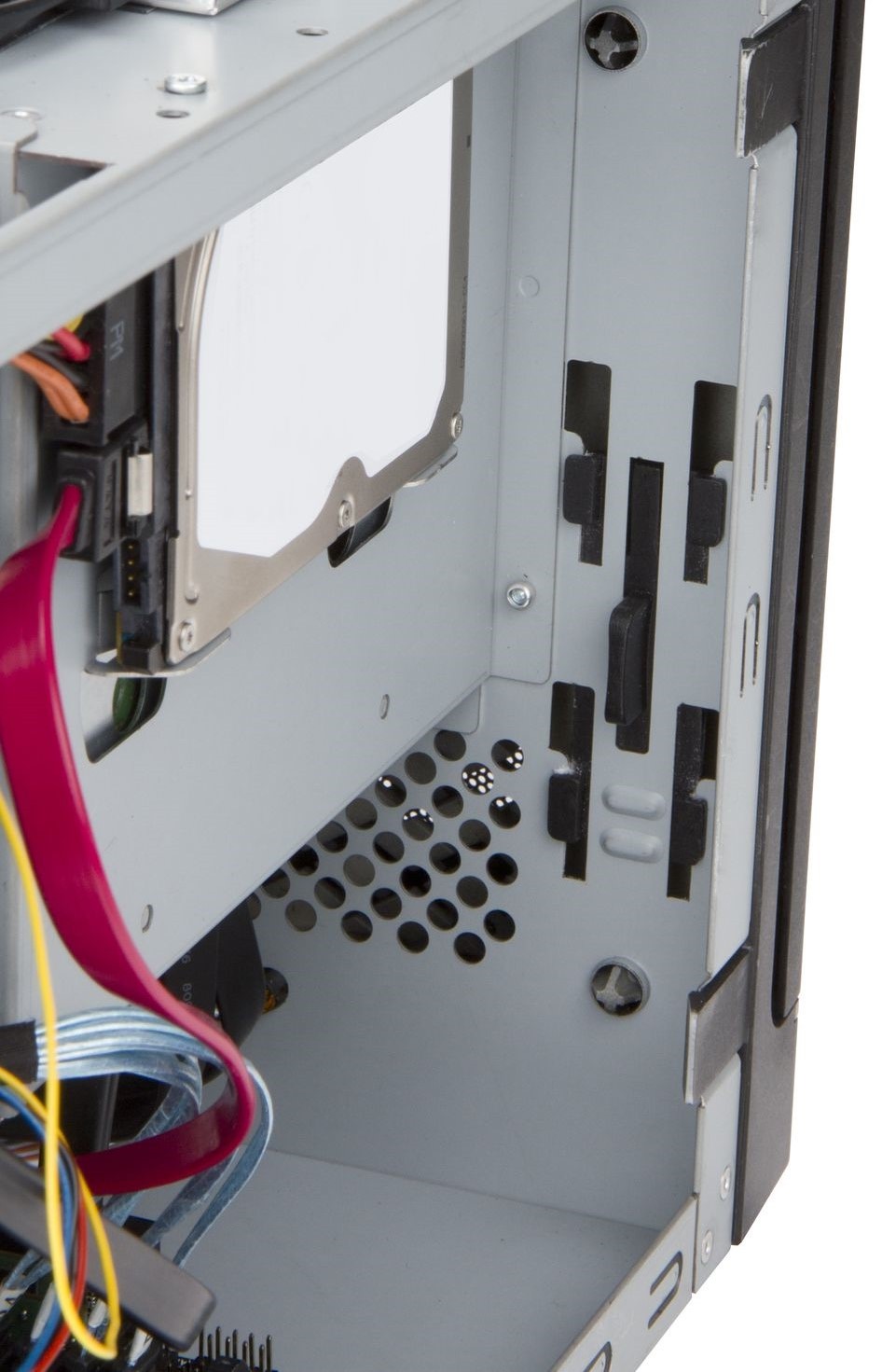

    2.5" HDD for OS
    Panel Lock for security
    120mm PWM fan
    M/B Tray for easy maintenance
