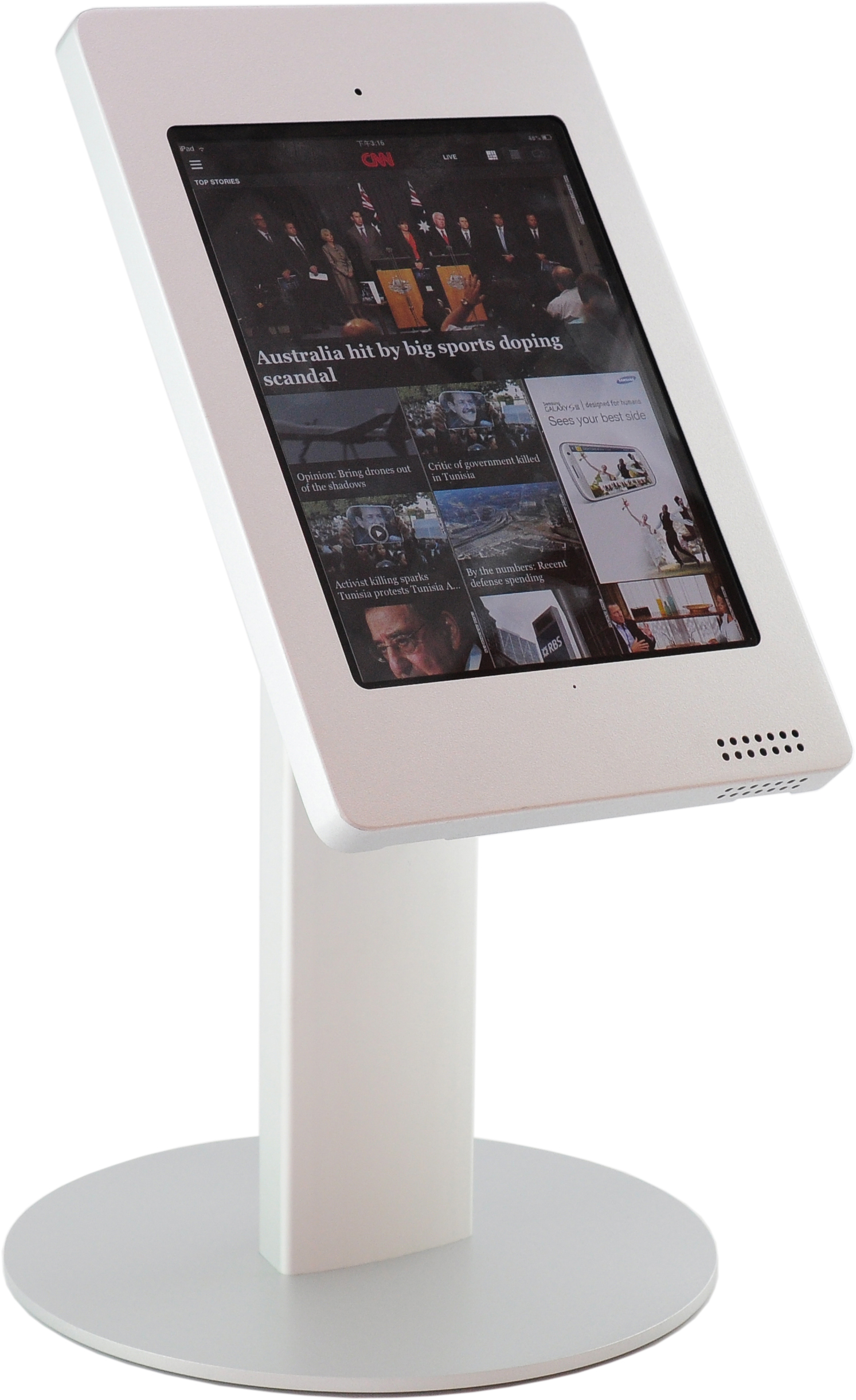

KSC1
|
KS series Turning the iPad into KIOSK
For iPad 2/3/4 |
|
KSC1-E10 EAN: 4260345730048
KSC1-E12 EAN: 4260345730055 |
|
Column
- The column is made of Aluminum Alloy
- Height can make custom by request
- Cable route reserved in the lower end of stand
- Security, Stylish & Robust Construction
- Lockable Pivot feature for landscape or portrait
- Friendly Tilt angle of 90 degree
- Charger space reserved
- Cable route reserved
Enclosure Module
- For iPad 2/3/4
- With Hinge Bracket for tilt and pivot function
- The case is made of t0.8mm SECC sheet metal
- Security with socket-screw, CAM key lock, Kensington slot
- This secure iPad enclosure features a radio-transparent,
Bluetooth, Wi-Fi and 3G radio frequencies are unimpeded in the iPad
- The Hinge bracket can be used in both landscape and portrait mode, and
tilt the viewing up-down angle from horizontal to vertical
- This Enclosure is secured with socket screw
and re-enforced with a CAM lock and key,
Kensington slot hole is reserved
- The interior surrounded with rubber sponge and Mylar sheet to protect iPad
- Reserved space for Power Bank of 110 x 70 x 24.5mm, suggest to attach into the enclosure by fabric
hook-and-loop fastener
- Reserved vents for thermal consideration and keep the original sound out
|
|
Model |
KSC1 |
Dimension |
Enclosure : 30 x 20 x 7cm weight : 1kg
Column Height : 9.8 in (25cm) weight : 0.3kg
Base diameter : 9.8 in (25cm) weight : 1.8kg |
Construction |
Column : t1.5mm Extruded
Aluminum Alloy
Hinge bracket is security covered with
stylish plastic cup by socket screw
Base : t0.5mm Sheet Metal
User have to integrate iPad Enclosure,
column and base |
Packing Information |
All in one package (Enclosure, Column, Base):
42 x 42 x H14.5cm N.W.3.2kg/G.W. 4.5kg |
Package |
5pcs/inner carton 26.5x33x22cm
Net W. : 1.95Kg Gross W. : 2.28Kg
20pcs/Carton (4 inner cartons)
Net W. : 7.8Kg Gross W. : 10.42kg
56x34.5x46cm (3.14cuft)
|
Options for Enclosure |
|
E10 (Standard) |
The top cover of enclosure
with ALS (Ambient Light Sensor) hole, Camera hole blocked,
Home button blocked (There is pin-hole
access to home button for technician) |
E12 |
The top cover of enclosure
with ALS hole, Camera accessible, Home button accessible |
E11 |
The top cover of enclosure
with ALS hole, Camera accessible,
Home button blocked (There is pin-hole
access to home button for technician) |
Dimension |
300 x 200 x16mm Weight : 0.28kg |
Bulk Packing Information |
10pcs/Carton 33 x 30 x H23cm
N.W.2.8kg/G.W. 4.0kg |
|
|
|
|
|
|
|
KSC1-E10
|
KSC1-E12 Reserved space for power bank
|
Interior surrounded with mylar sheet
|
Rear Side with Stand
|
|
|
|
|
Vents for original sound out
|
