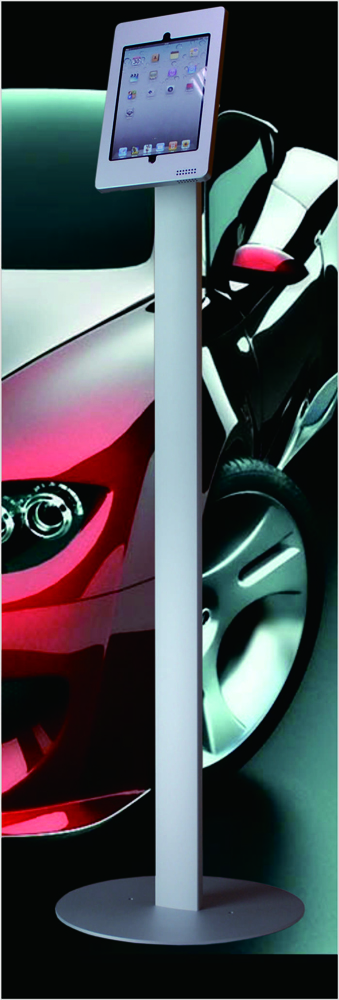

KSG1
|
KS series Turning the iPad into KIOSK
For iPad 2/3/4 |
|
|
KSG1-E10 EAN: 4260345730079
KSG1-E12 EAN: 4260345730086 |
 |
Column
- The column is made of Aluminum Alloy
- Height can make custom by request
- Cable route reserved in the lower end of stand
- Security, Stylish & Robust Construction
- Lockable Pivot feature for landscape or portrait
- Friendly Tilt angle of 90 degree
- Charger space reserved
- Cable route reserved
Enclosure Module
- For iPad 2/3/4
- With Hinge Bracket for tilt and pivot function
- The case is made of t0.8mm SECC sheet metal
- Security with socket-screw, CAM key lock, Kensington slot
- This secure iPad enclosure features a radio-transparent,
Bluetooth, Wi-Fi and 3G radio frequencies are unimpeded in the iPad
- The Hinge bracket can be used in both landscape and portrait mode, and
tilt the viewing up-down angle from horizontal to vertical
- This Enclosure is secured with socket screw and re-enforced with a CAM lock and key,
Kensington slot hole is reserved
- The interior surrounded with rubber sponge and Mylar sheet to protect iPad
- Reserved space for Power Bank of 110 x 70 x 24.5mm, suggest to
attach into the enclosure by fabric hook-and-loop fastener
- Reserved vents for thermal consideration and keep the original sound out
|
 |
| Model |
KSG1 |
| Dimension |
Enclosure : 30 x 20 x 7cm weight : 1kg
Column : 80 x 40 x H1250mm(4'1") weight : 1.5kg
Base diameter : 15.8 in (40cm) weight : 5.0
kg
|
| Construction |
Column : t1.5mm Extruded
Aluminum Alloy
Hinge bracket is security covered with stylish plastic cup by socket screw
Base : t0.5mm Sheet Metal
User have to integrate iPad Enclosure, column and base |
| Packing Information |
Pedestal Column individual packed :
132 x 14.5 x H11cm N.W: 1.5kg/G.W.: 2.2 kg
Base + Enclosure mixed Packed:
42 x 42 x H14.5cm N.W.:6.0 /G.W.: 7.2kg |
|
Options for Enclosure |
|
| E10 (Standard) |
The top cover of enclosure
with ALS hole, Camera hole blocked,
Home button blocked (There is pin-hole
access to home button for technician) |
| E12 |
The top cover of enclosure
with ALS (Ambient Light Sensor) hole, Camera accessible, Home button accessible |
| E11 |
The top cover of enclosure
with ALS hole, Camera accessible, Home button blocked (There is pin-hole
access to home button for technician) |
| Dimension |
300 x 200 x16mm Weight : 0.28kg |
| Bulk Packing Information |
10pcs/Carton 33 x 30 x H23cm
N.W.2.8kg/G.W. 4.0kg |
|
| |
 |
|
|
|
|
|
|
KSG1-E12
|
Cable route reserved
|
Interior surrounded with Mylar sheet
|
Rear Side with Stand
|
|
|
|
|
|
|
KSG1-E10 Vents for original sound
out
|
