RG02
|
Waterproof Rugged Case for iPad Air
|
EAN: 4260345730161 |
|

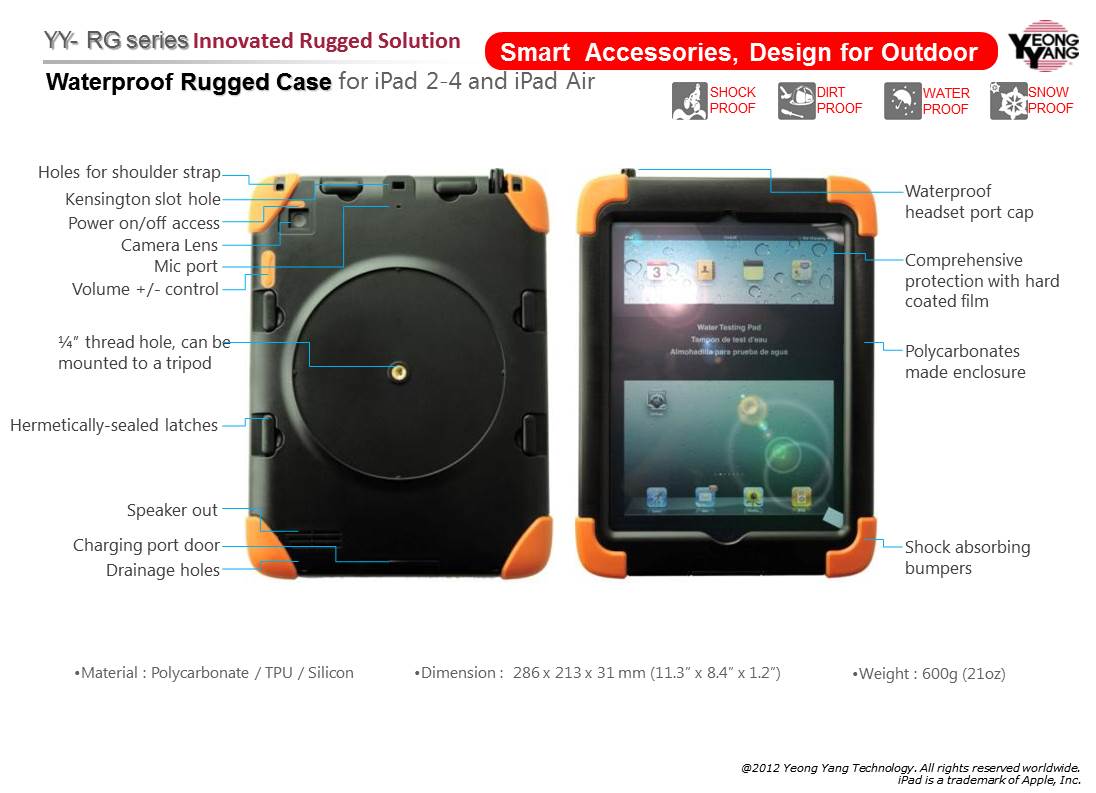

- Comprehensive protection with hard coated film and full access to all necessary ports
- Shock absorbing bumpers and lining, tested and passed MIL-STD-810G-516.6
- Internal compartements hermetically-sealed with IP68 certificate
- Usage in warehouse, construction area, on yacht, at outdoor
- Enclosure made of polycarbonate with tripod mounting and security lock option
- Kensington Slot
- Security, Stylish & Robust Construction
- Waterproof Access to Audio
- Charging while using the iPad is possible
- Test Results (RG01):
"...das Gehäuse war, wie in der Anleitung beschrieben, einfach angebracht, absolut wasserdicht
und voll bedienfähig. Das Preis-Leistungs-Verhältnis ist hervorragend. Wir können das Produkt
nach unserem Test mit gutem Gewissen weiterempfehlen." (Wasserski & Wakeboard Magazin)
"Gute Bedienbarkeit, Schrauben an Rückseite für feste Montage/Halter, Günstiges Gehäuse
bei allen Funktionen" (Yacht Magazin)
Test Limits
MIL-STD-810,
Environmental Engineering
Considerations and Laboratory
Tests is an United States
Military Standard that
emphasizes tailoring an
equipment's environmental design
and test limits to the
conditions that it will
experience throughout its
service life, and establishing
chamber test methods that
replicate the effects of
environments on the equipment
rather than imitating the
environments themselves. The
current document revision (as of
2012) is MIL-STD-810G.Test
Method 516.6 :
total
26 drops from 4 feet (122cm)
height to 2" plywood.
IP68, International
Protection Rating IEC60529
Edition 2.1 : 2001 which
classifies and rates the degree
of protection provided against
the intrusion of solid objects,
dust, accidental contact, and
water in mechanical casings and
with electrical enclosures. The
standard aims to provide users
more detailed information than
vague marketing terms such as
waterproof. Test method of water
proof test: locate the enclosure
1M
below the surface of the water
in duration of 1 hour.
Test method of dust test :
locate the enclosure in 1M3
chamber with maximum depression
of -20mbar / 2Kg Talcum powder
in duration of 8 hours.
|
|
Model |
RG02 |
Material |
Polycarbonat/TPU/Silicon |
Dimension |
286 x 213 x 31 mm (11.3" x 8.4 x 1.2") |
Weight |
600g |
Options |
Rail Base, Round Base, Suction Cup Set, Hand Strap,
Shoulder Strap, Waterproof Adapter Cable |
|
|
|
|
|
|
|
Front Side
|
Rear Side
|
Dirt-Proof
|

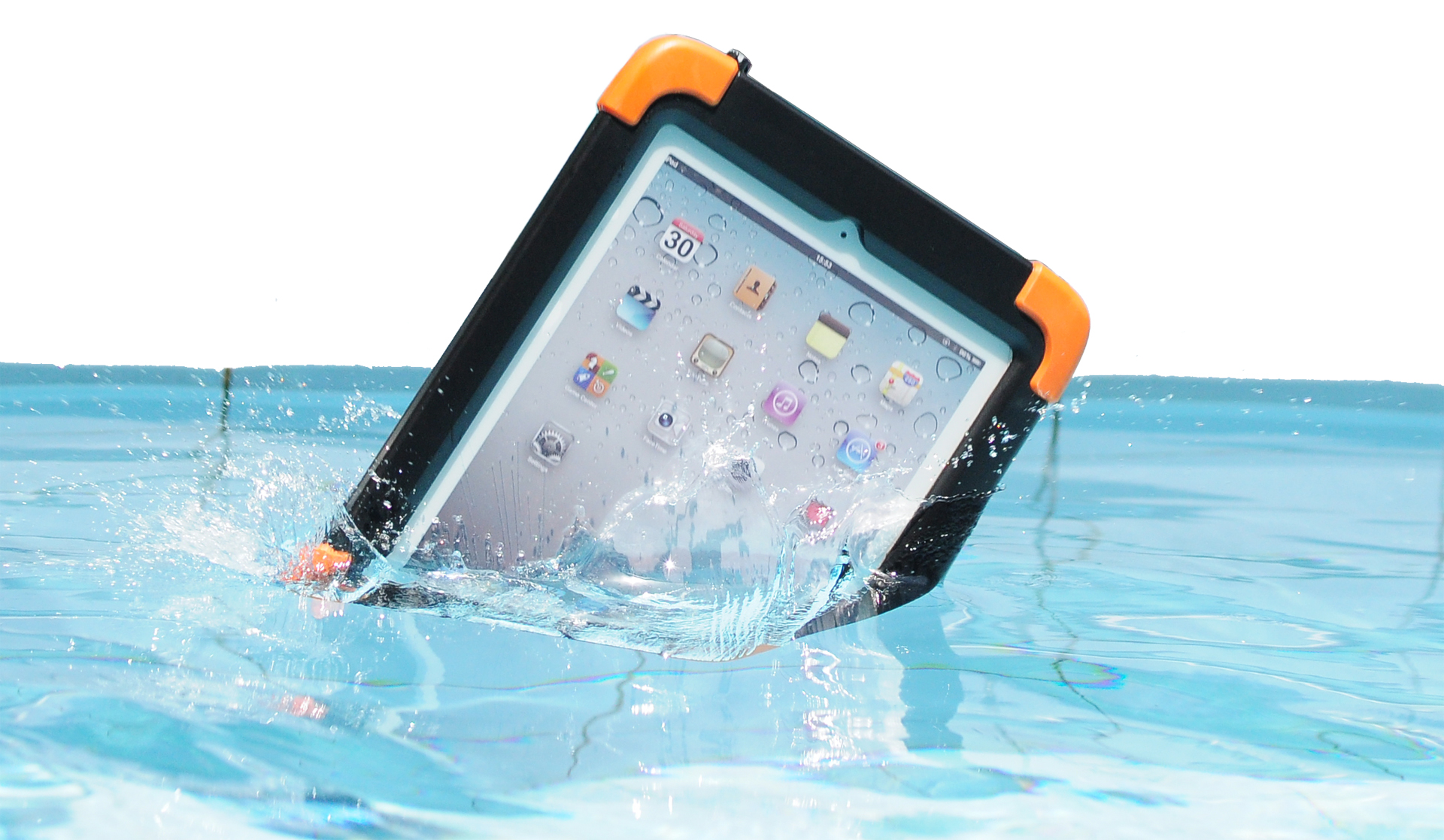

Water-Proof
|
|
|
|
|
RAM Mount with Rail Base
|
RAM Mount with Round Base
|
RAM Mount with Suction Cup
|
RG-01 - TT-DBM-S01B
|
|
|
|
|
RG01 - TT-WSM-04B
|
RAM Mounts
|
Video
|
Test
|
|
|
|
