RM14300 Chenbro 19"/1U Rackmount
Rackmount Cases > RM14300


RM14300
  • Online Catalog
  • Technical Product Specification
  • Quick Installation Guide (manual)

  •
    • Chenbro 19" 1U Rackmount Case
    • Supports front and rear motherboard I/O access
    • Tool-less(RM14300-EZ) or non Tool-less(RM14300) HDD carrier for concurrent 3.5" and 2.5" HDD
    • Flexible HDD configurations via optional HDD carriers
    • Anti-vibration 40mm PWM fan (up to thickness 48mm)
    Case dimension 406.7mm W x 438.5mm D x 43.2mm H
    Motherboard configuration Micro ATX
    Standard I/O Shield 1U, For Intel S1200SPO/S1200SPL/S1200SPS
    Drive configuration
  • 2 - 3.5" HDD
  • 2 - 2.5" HDD
  • optional: Slim ODD
  • System cooling fans 3x 40mm(T=28mm, up to 48mm), PWM
    Riser Card  1U, 1 Slot, PCI-e 8x
    PCI-e 16x, Gen 3, Rev. D0
    Gross Weight 6.22kgs/13.7lbs
    Optional Power Supply Flex ATX up to 200W (Rear Installation), Max. Depth 150mm
    Optional Kits Telescopic Sliders, Riser Card

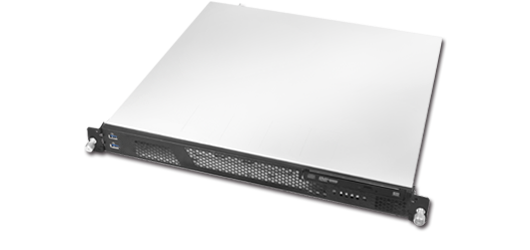

    Angle View
     Top View
    Rear Side
    Front Side
