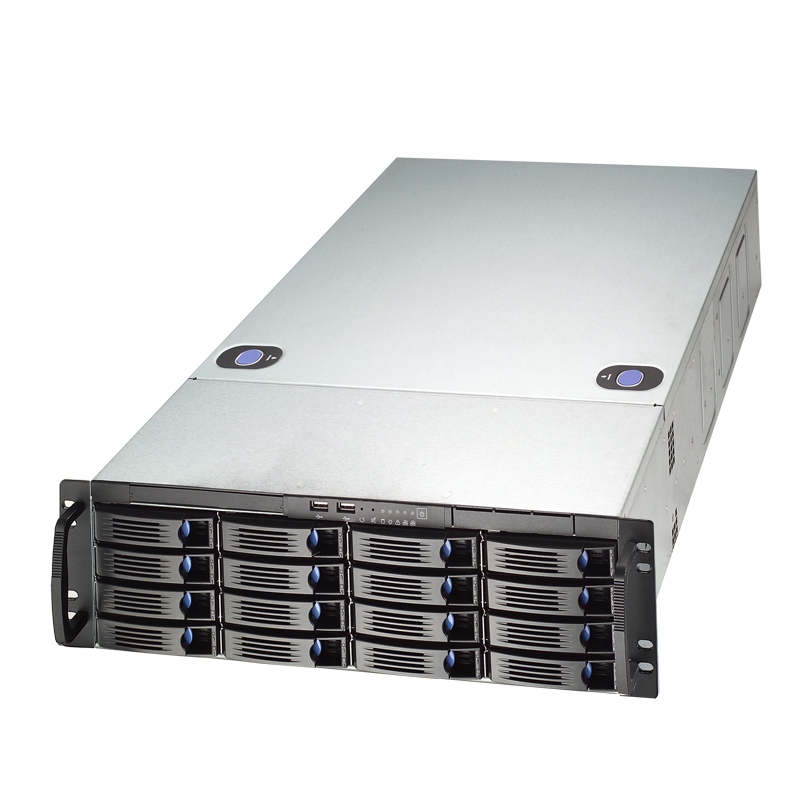

RM316 Chenbro 3U 16-bay High Storage
Rackmount Cases > RM316



  • Online Catalog
  • Manual

    • Chenbro 3U 16-bay High Storage Density Server Chassis
    • Support motherboard size up to 12" x 13"
    • Support 16-port 6Gb/s mini-SAS backplane
    • Tool-less design on top cover, FDD and ODD installation
    • Built-in 4 x 80mm hot-swap PWM middle fans
    • Fan bar with anti-vibration mechanism
    • Support 2U single and 2+1 redundant power supply unit
    Case dimension 430mm W x 660mm D x 132mm H
    Motherboard configuration EATX (Max. 12" x 13") SSI EEB 3.0
    Processor Intel / AMD DP Quad
    Support Backplane 6Gb/s 16-port mini-SAS backplane
    Security Intrusion Switch
    Drive configuration
  • 16 - hot-swap 3.5"
  • 1 - Slim ODD
  • 1 - Slim FDD
  • Metal Material SGCC
    Plastic Material Type ABS-HB
    Metal Thickness 1.2mm
    System cooling fans 4 x 80mm PWM (T=38mm), 2 x 80mm (option)
    Expansion Slot 7
    Front Panel Power On/Off, System Reset, Alarm Mute, Power LED, 1 x HDD Activity, 2 x LAN Activity LED, FAN Failure/Overhead, 2 x USB 2.0
    Net Weight/Gross Weight 15.2kg/19.4kg
    Optional Power Supply 2U single P2G-6510P or 1+1 redundant C2W-5620V
    Optional Kits 26" Sliding Rail, 80mm fans
    Front Side
    Top View
    Rear Side
