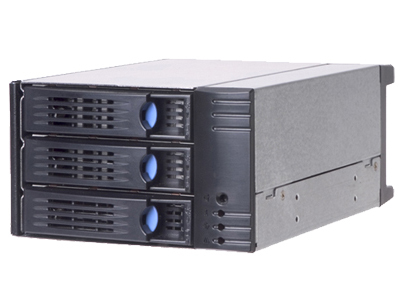

SK32303 Chenbro Storage Kit
Peripheral > Raid Module > SK32303

  • Online Catalog
  • Manual
    • Convert 2 x 5.25" bay to 3 x 3.5" Hot-swap HDD bays
    • Easy installation and maintenance
    • Validated thermal solutions
    • Hardware monitoring
    Description 3x 3.5" HDD Module with 6Gb/s SATA backplane
    Support Backplane
    6Gb/s SATA
    Hot-Swap 3.5"
    Metal Material SGCC
    Cooling One 60x60x25mm (Rear)
    Front Panel Power On/Off, Alarm Mute, Event Warning, Fan Failure
    Connector to Drive 3 x (22+7) pins SAS connector
    Connector to Host 3 x 7 pins SATAII/SAS connector
    Dimension 218.5 D x 146 W x 84.4 H (mm)
    Weight 1.4kg
    Package Content 3 x 3.5" HDD tray, 1 x 3-port 6Gb/s SATA BP, 1 x 80mm(T32), 3P3C, Ball, L120mm, 1 x HDD failure and activity, 4P to 4P, 600mm, 3 x SATA cables, 700mm

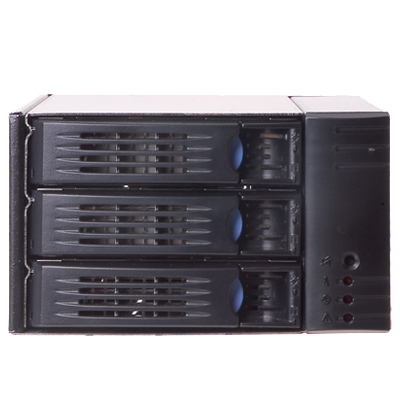

    Front Side
    Side View

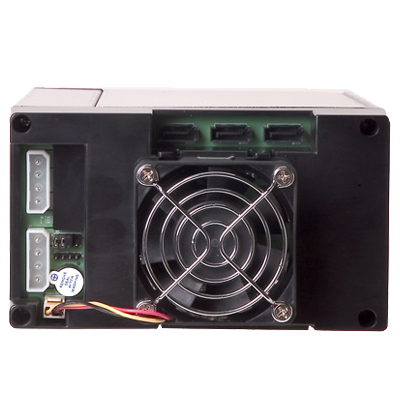

    Rear Side
