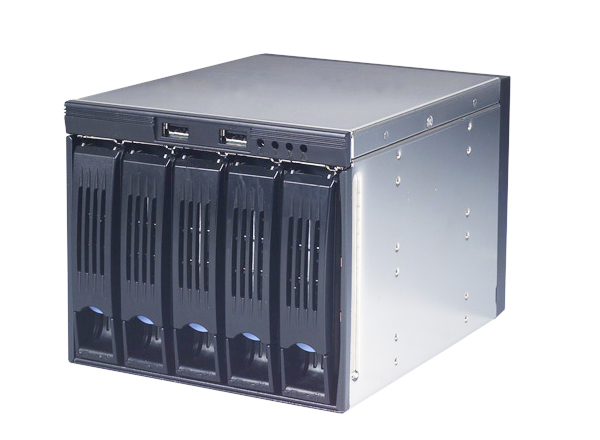

SK33502 Chenbro Storage Kit
Peripheral > Raid Module > SK33502

  • Online Catalog
  • Manual
    • Convert 3 x 5.25" bay to 5 x 3.5" Hot-swap HDD bays
    • Easy installation and maintenance
    • Validated thermal solutions
    • Hardware monitoring
    Description 3 x ODD bays to 5 x 3.5" hot-swap HDD bays
    Support Backplane
    6Gb/s SATA
    Hot-Swap 3.5"
    Metal Material SGCC
    Cooling One 80x80x25mm (Rear)
    Front Panel Power On/Off,, Alarm Mute, Overheat Warning, Fan and HDD Failure LED, 2 x USB2.0
    Connector to Drive 5 x (22+7) pins SAS connector
    Connector to Host 5 x 7 pins SATAII/SAS connector
    Dimension 218.5 D x 146 W x 127.3 H (mm)
    Weight 2.23kg
    Package Content 5 x 3.5" HDD tray, 1 x 5-port 6Gb/s SATA BP, 1 x 80mm(T32), 3P3C, Ball, L120mm, 1 x HDD Activity Cable, 600mm, 1 x USB2.0 Cable, 750mm, 5 x SATA cables, 700mm

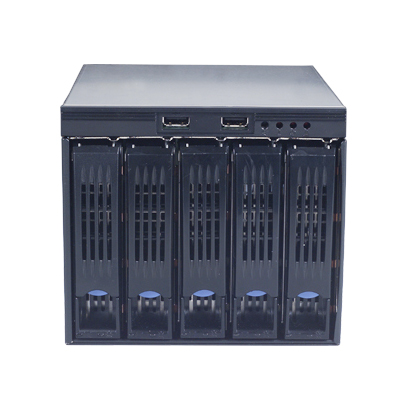

    Front Side

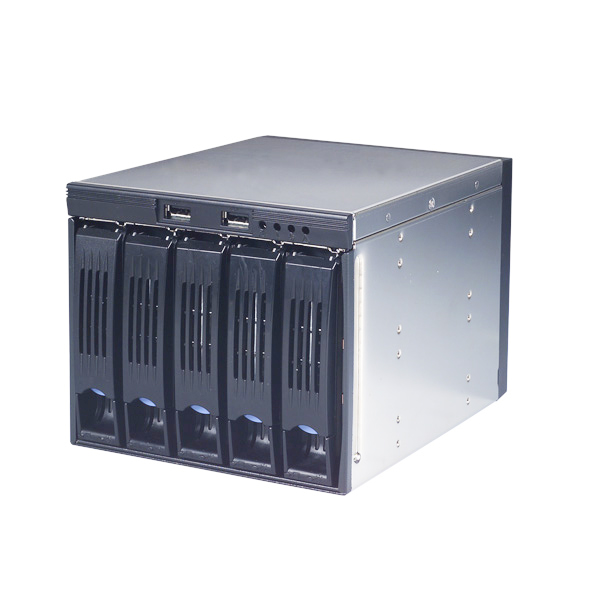

    Side View

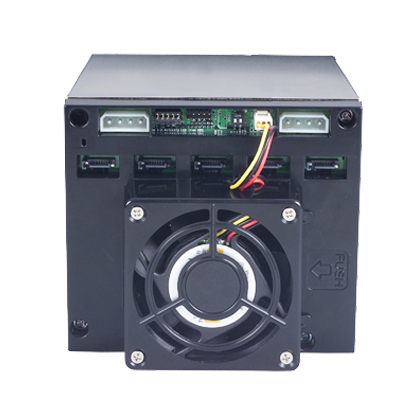

    Rear Side
