Fortron FSP400-60APN 85+ |
 Peripheral
> Power Supply > Fortron > FSP400-60APN |
|

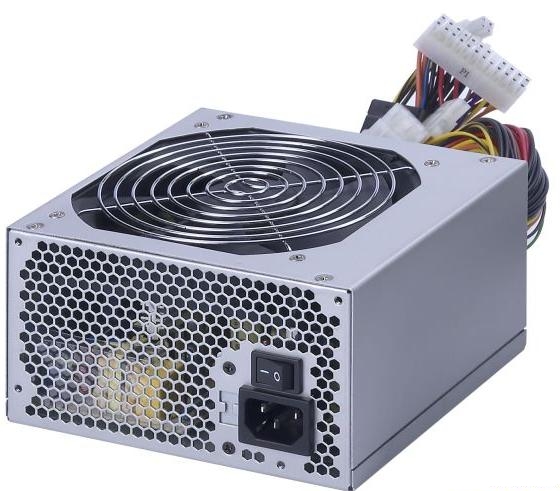

FSP400-60APN 85+
|
|
 |
- Complies with ATX 12V 2.3
- 400W
- High Efficiency (up to 85%) meets 80 PLUSŪ Bronze requirements at 230V input
- Active PFC (>0.9)
- Low noise (<30.9dB)
- Low ripple & noise
- OVP, OCP & SCP protection
- 12cm Fan
- Dimensions : 150mm W x 140mm D x 86mm H
|
 |
|
|
|
|
|
|
1 x 20/24 PIN
|
1 x 4 PIN
|
2 x 6 PIN PCI-E
|
1 x Floppy
|
|
|
|
|
|
|
2 x Molex
|
3 x SATA
|
|
|
|
 |
 |
ENVIRONMENTAL |
| |
AC Input: 180~264V, 2.5A, 47~53Hz
PSU Load: 20%, 50%, 100%
Effizienz: 83.88%, 85.68%, 82.84%
|
| VOLTAGE |
+3.3V
|
+5V
|
+12V1
|
+12V2
|
+12V3
|
+12V4
|
-12V
|
+5Vsb
|
| MAX. LOAD |
24.0A
|
15.0A
|
17.0A
|
17.0A
|
|
|
0.3A
|
2.5A
|
Remarks:
* The total output for +5V and +3.3V is limited to under 120W.
* The total output of +12V1, +12V2, is limited to 336W.
* The total output 4000W, peak output 450W.
|
|
 |
|
|
|
|
|
|
