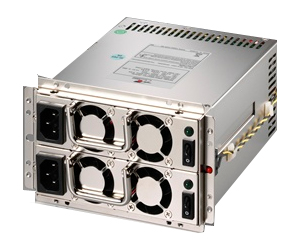

Zippy MRW-5450V Mini Redundant |
 Peripheral
> Power Supply > Zippy > MRW-5450V |
|
 |
- Output Wattage: 450W
- Connector Type:
ATX 2.03, ATX12V(P4), EPS12V, WTX, AMD-GES
- Best Solution for:
Server, Workstation, Storage System, IPC
- Dimension:
185.00 x 150.00 x 86.00 (mm)
7.28 x 5.91 x 3.39 (inch)
|
 |
 |
AC INPUT SPECIFICATION |
<
| |
VOLTAGE: 90 ~ 264VAC FULL RANGE
FREQUENCY: 47 ~ 63 Hz.
STEADY-STATE CURRENT: 7/3A AT ANY LOW/HIGH
RANGE INPUT VOLTAGE
INRUSH CURRENT: 25A MAX. FOR 110 VAC , 50A MAX.
FOR 220 VAC (AT 25 DEGREE C AMBIENT COLD START)
PFC: UP TO THE TARGET OF 95% @110V, FULL LOAD
|
|
|
DC INPUT SPECIFICATION |
|
OUTPUT VOLTAGE
|
OUTPUT CURRENT
|
REGULATION
|
OUTPUT
|
|
MIN.(A)
|
MAX.(A)
|
LOAD
|
LINE
|
RIPPLE & NOISE
MAX.[P-P]
|
|
+5V
|
1
|
25
|
±250mV
|
± 1%
|
50mV
|
|
+12V
|
1
|
37
|
±600mV
|
± 1%
|
120mV
|
|
-12V
|
0
|
0.8
|
±600mV
|
± 1%
|
120mV
|
|
+3.3V
|
1
|
25
|
±165mV
|
± 1%
|
50mV
|
|
+5VSB
|
0.1
|
3.5
|
±250mV
|
± 1%
|
60mV
|
Remarks:
* TOTAL OUTPUT POWER OF +5V & + 3.3V NOT
EXCEED 170W
* TOTAL MAXIMUM OUTPUT OF 5V, 3.3V AND 12V
: 450W |
|
- TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃; STORAGE TEMPERATURE: -20℃ – 80℃
- HOLD UP TIME: 16mS MINIMUM AT NOMINAL INPUT VOLTAGE
- EFFICIENCY: TYPICAL >80% AT 115V, 25%~100% MAX LOAD
- LEAKAGE CURRENT: 3.5 mA. MAX. AT NOMINAL VOLTAGE 250VAC
- POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
- OVER POWER PROTECTION: 110%~160%
- OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.5~6.5V, +12V→13.2~15.6V
- OVER CURRENT PROTECTION: +3.3V→27.5~37.5A, +5V→ 27.5~37.5A, +12V→45.1~65.6A
- SHORT CIRCUIT PROTECTION: +12V, -12V, +5VSB
- SAFETY: TO MEET UL, TUV, CB, CCC, RFI/EMI STANDARDS
- EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
- REMOTE ON/OFF CONTROL
- I2C FEATURES (OPTIONAL)
|
|
|
|
|
