Super Flower SF-1000P14PE ATX
Peripheral > Power Supply > SF > SF-1000P14PE


SF-1000P14PE
 Super Flower Golden King Platinum




  • 80+ Verification
  •

    • Compliance with ATX 12V v2.2, EPS 12V v2.91 and SSI EPS 12V v2.92 Specification.
    • Support all Intel and AMD Multi-Core CPU and its compatible Motherboards, ATX compliant.
    • Fit in with U.S.A Energy Star standards/ EuP(Energy-using Products) instructions : energy consumption during shut off status less than 1W.
    • Over Power Protection / Under Power Protection / Over Voltage Protection / Short Circuit Protection.
    • Passed 80 PLUSŪ Platinum Certification, on 20% 50% 100% loading, with 91% 92% 90% Efficiency.
    • Three Exclusive Patents (Taiwan, China, U.S.A, Germany, Japan patent applied)

    1.ECO Intelligent Thermal Control System
    2.Hybrid Dual Voltage Automatic Switch System
    3.High Power Vertical Double Layer Main Transformer(China Patent no:ZL2009 2 0273193.2 ; Taiwan Patent no:M381155 )

    • More than 2,000 Times ON / OFF Test.
    • Full Range Design from 100V ~ 250V. (Active PFC).
    • Support NVIDIA (SLI)/ATI, high rank & high efficiency graphic card.
    • Patent easy plug-in design, safe and firmly attached once connected.
    • 1000W Active PFC

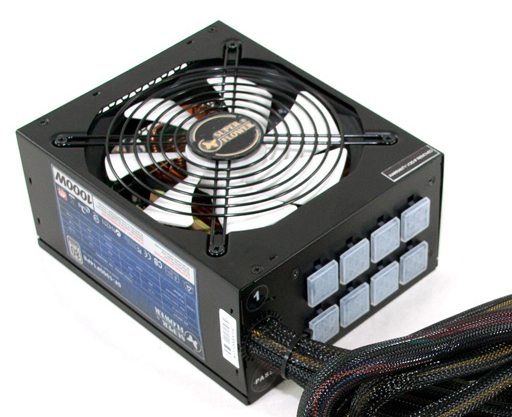

    • 14cm Silent Blue LED Fan with temperature control
    • Dimensions : 150mm W x 180mm D x 86mm H
    • Press: Jonnyguru, Techpowerup, Nikkitech (English)








    1 x 20/24PIN
    1 x 8 PIN (4+4)
    2 x 6 PIN PCI-E
    12 x SATA
    6 x Molex
    1 x Floppy
    4 x 8 PIN (6+2)
    1 x 8 PIN
  • Transform Efficiency: On 20% 50% 100% loading, with 91% 92% 90% Transform Efficiency
  • AC Input: 115Vac~ 240Vac 10A 60HZ/50Hz
  • Intel Power Design Guide: EPS Ver. 2.92
  • Outlook: Honeycomb ventilation panel, high efficiency air flow design

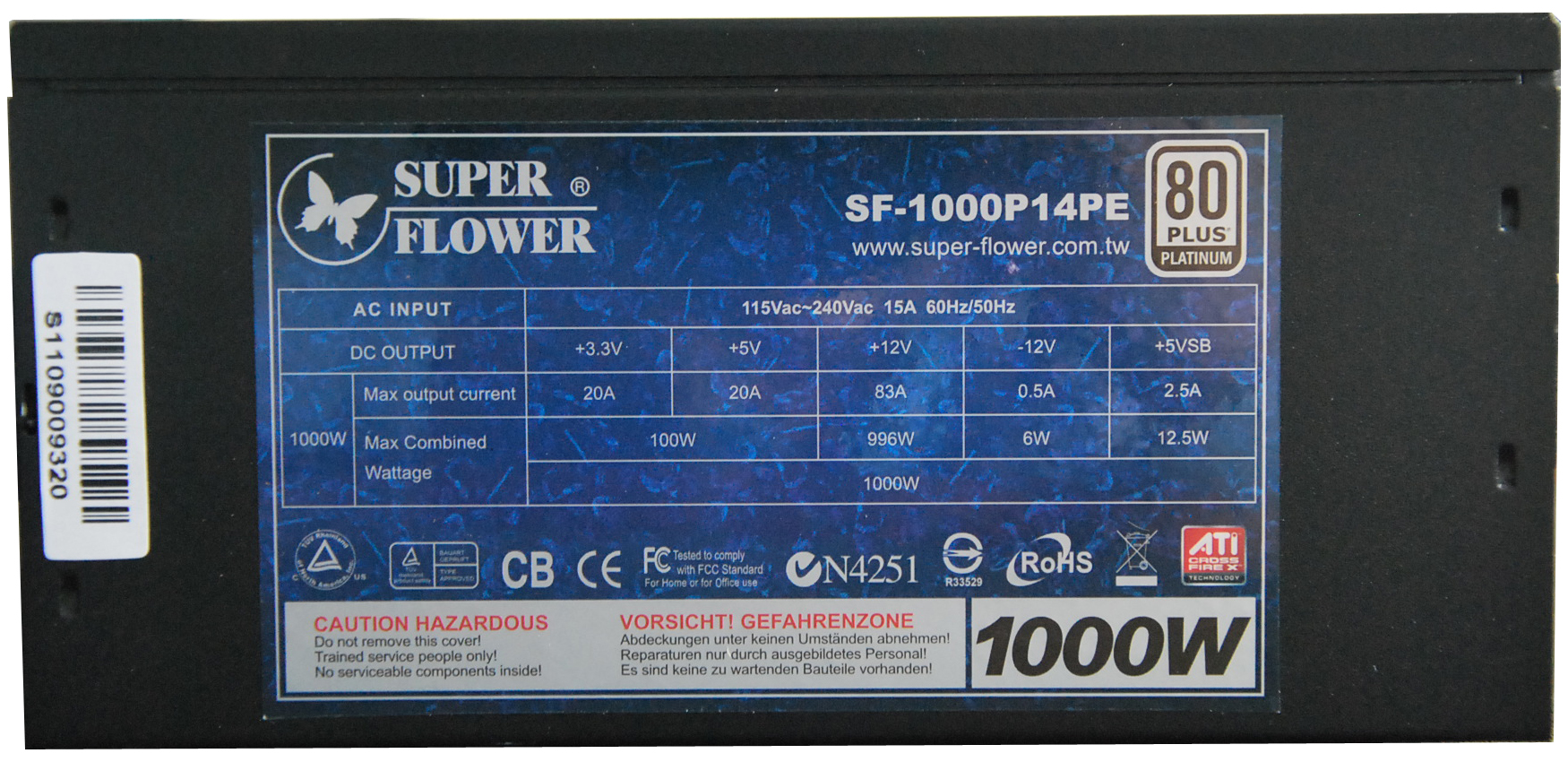

  • VOLTAGE
    +3.3V
    +5V
    +12V1
    -12V
    +5Vsb
    MAX. LOAD
    20.0A
    20.0A
    45.5A
    0.5A
    2.5A
    Remarks:
    * The total output for +5V and +3.3V is limited to under 100W.
    * Peak to 650W.


  • BSMI R33529 / CE / FCC / CUL / cTUVus / CB
