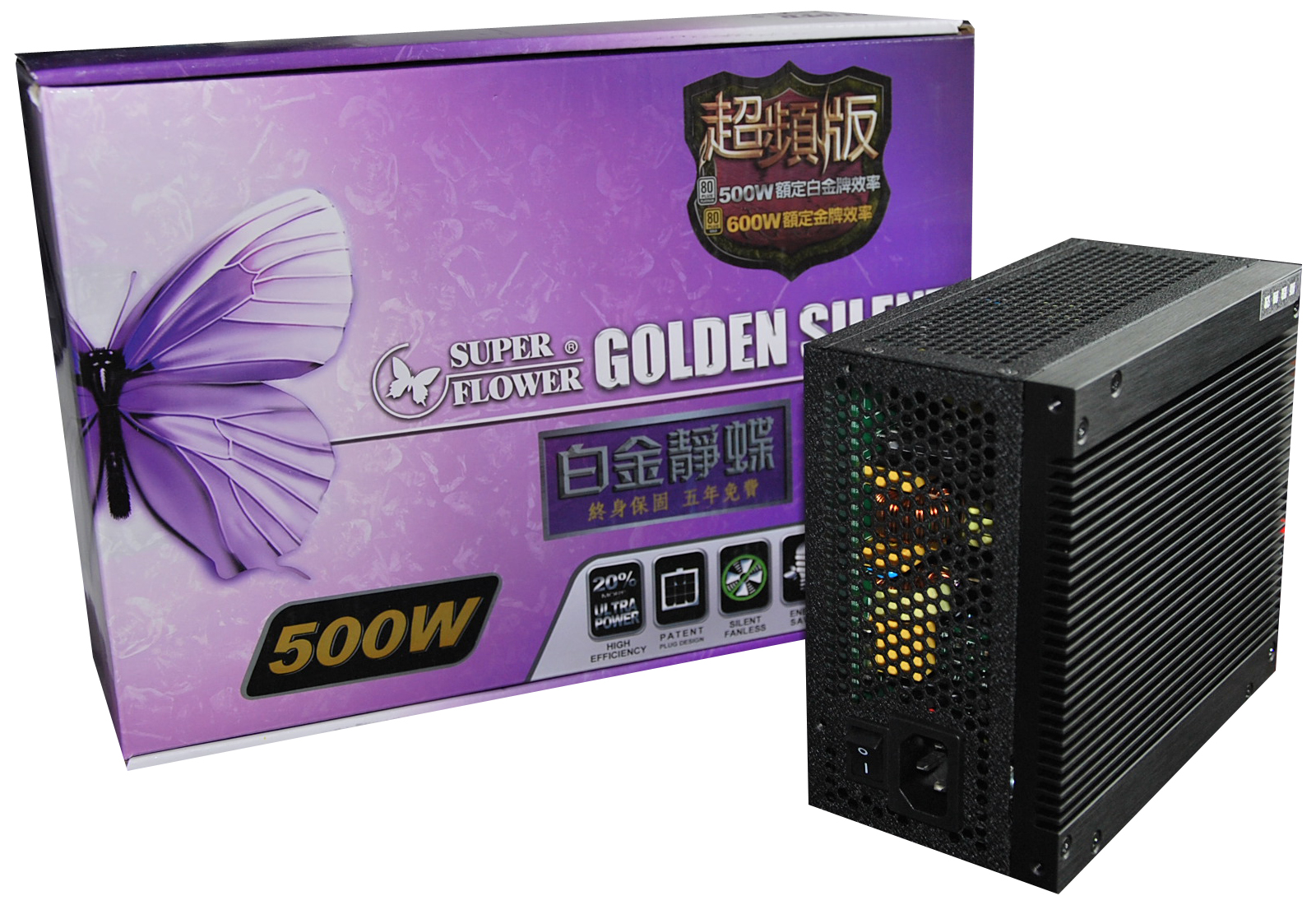

SF-500P14FG
|
Super Flower Golden
Silent Platinum
|
 |
- Supports all Intel and AMD multicore and its compatible Motherboards, ATX/BTX compliant.
- EPS 12V Ver2.92.
- Fit in with U.S.A Energy Star standards/ EuP(Energy-using Products) instructions : energy consumption during shut off status less than 1W.
- Support NVIDIA (SLI)/ATI, high rank & high efficiency graphic card.
- PCI-E power plugs are setup in a 6+2 configuration for the latest graphic cards and Compatible with every brand.
- Passed 80 PLUSŪ Platinum Certification, on 20% 50% 100% loading, with 90% 92% 89% Transform Efficiency.
- Exclusive Patents (Taiwan, China).
- High Power Vertical Double Layer Main Transformer.
- (U.S.A.Germany, Japan, Spainpatent applied.
- Extend Output Capacitance are used for higher stability and longer lasting.
- All Capacitor and Capacitance are made in Japan with higher stability and longer lasting
- Multiple Protection Design : OVP,OPP,SCP.
- Switches on/off test for more than 2000 times.
- All series are made of RoSH unleaded green material.
- Multiple safety certificates acquired.
- 500W Active PFC
- Dimensions : 150mm W x 170mm D x 86mm H
- Press:
Jonnyguru,
Techpowerup (English),
Cowcotland,
PC Update,
GinjFo (French),
Playwares (Korean)
- TV:
Cowcotland (French)
|
 |
|
 |
|
|
|
|
|
|

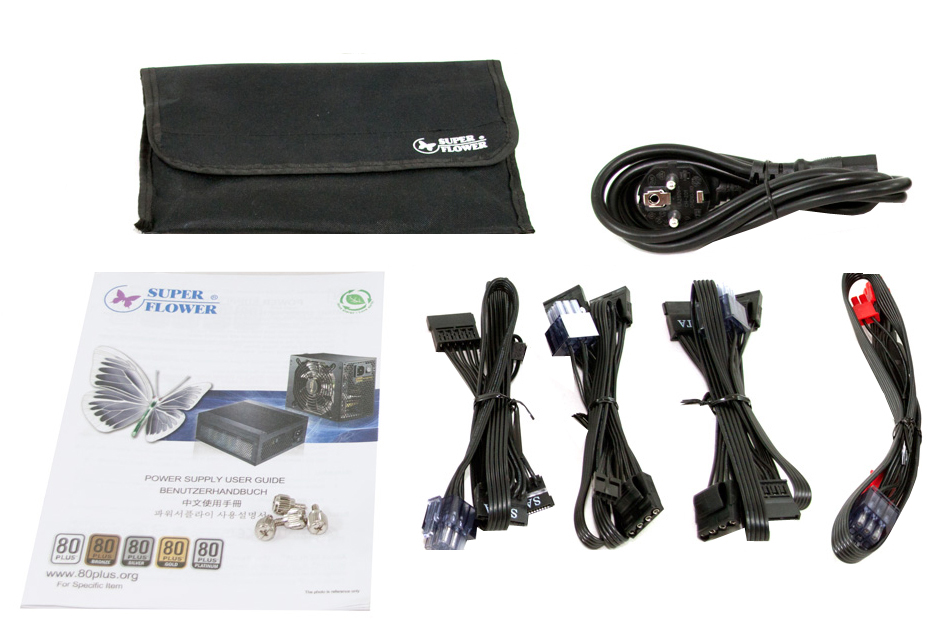

1 x 20/24PIN
|
1 x 8 PIN (4+4)
|
2 x 6 PIN PCI-E
|
6 x SATA
|
|
|
|
| |
|
5 x Molex
|
1 x Floppy
|
2 x 8 PIN (6+2)
| |
|
 |
|
Transform Efficiency: On 20% 50% 100%
loading, with 90% 92% 89% Transform Efficiency
AC Input: 115Vac~ 240Vac 10A 60HZ/50Hz
Intel Power Design Guide: EPS Ver. 2.92

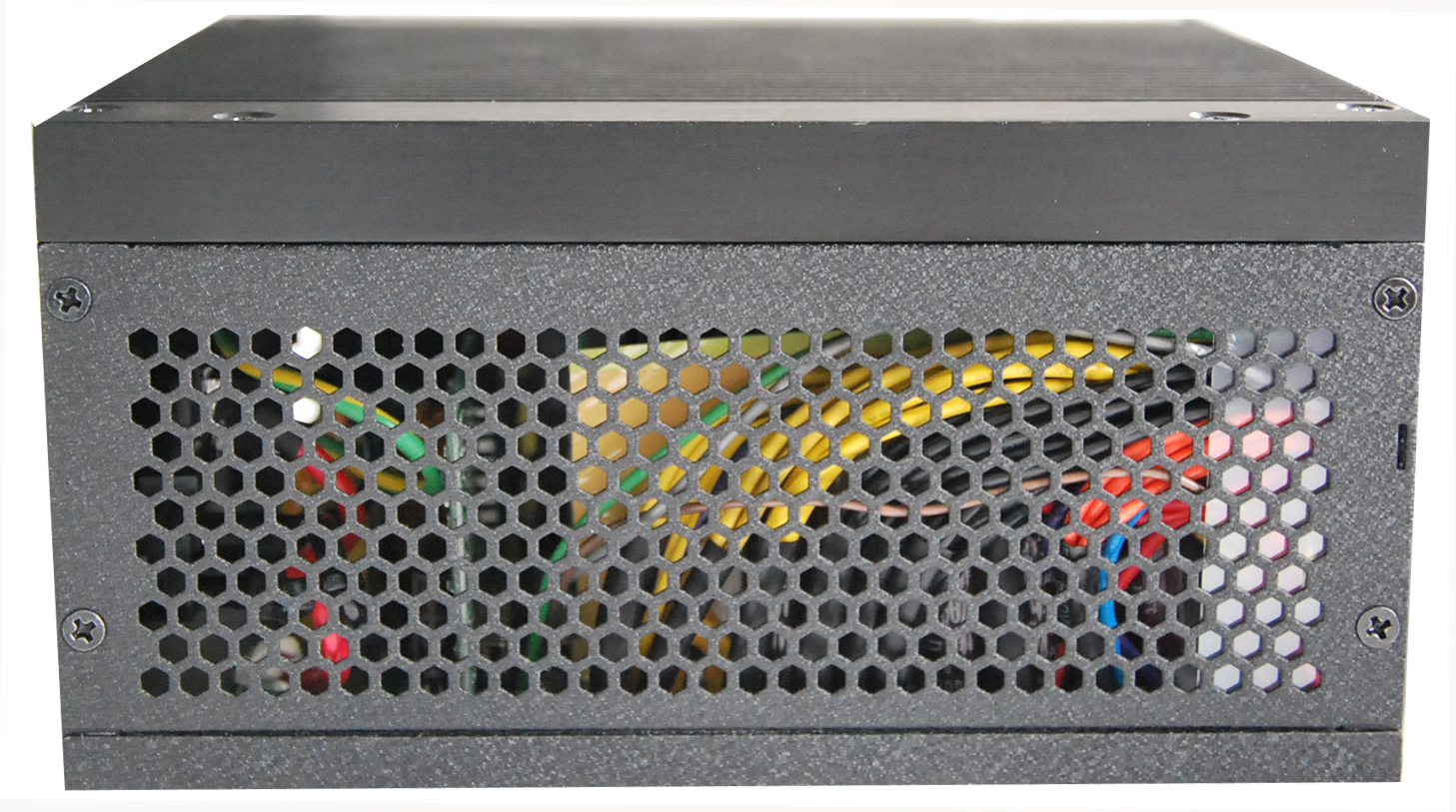

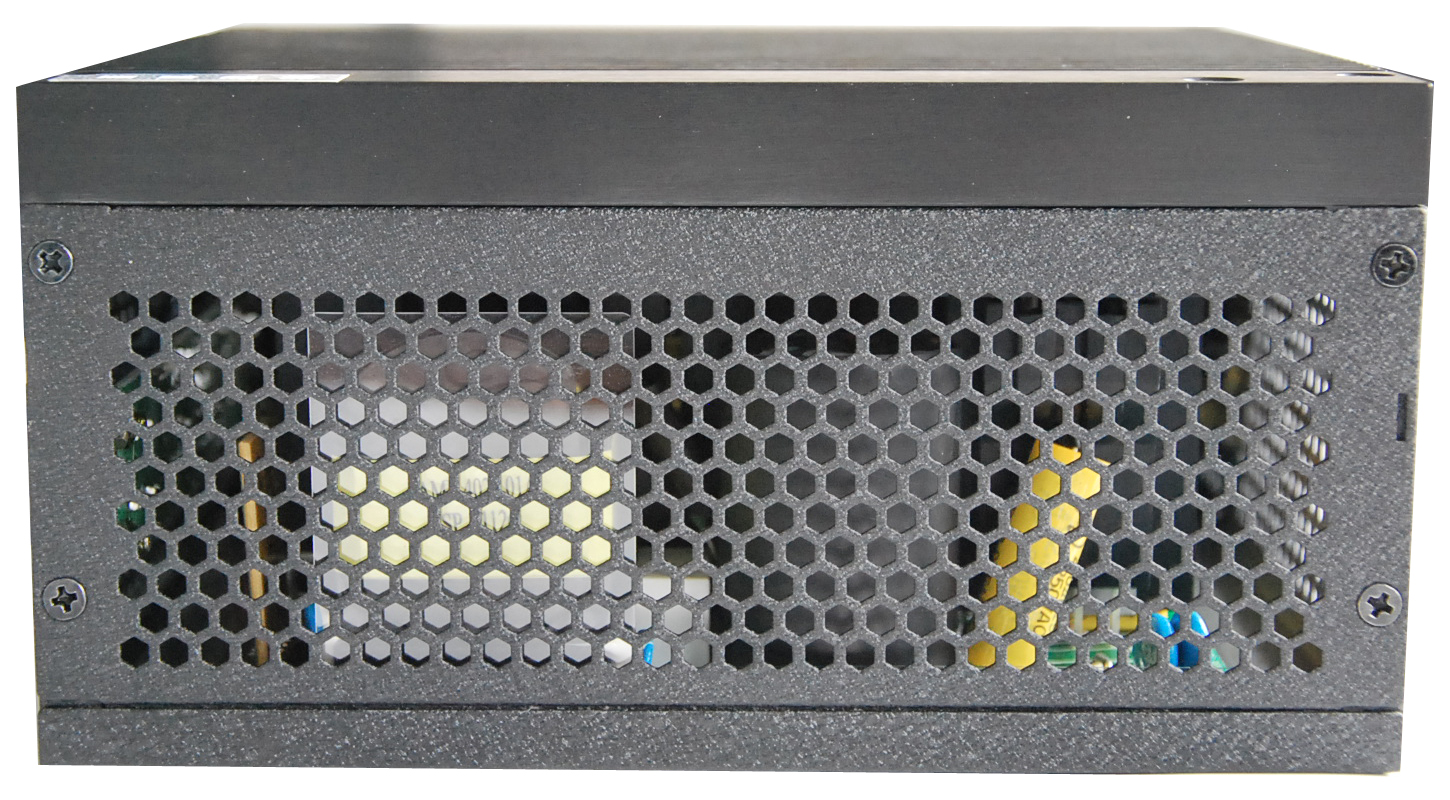

Outlook: Honeycomb ventilation panel,
high efficiency air flow design
|

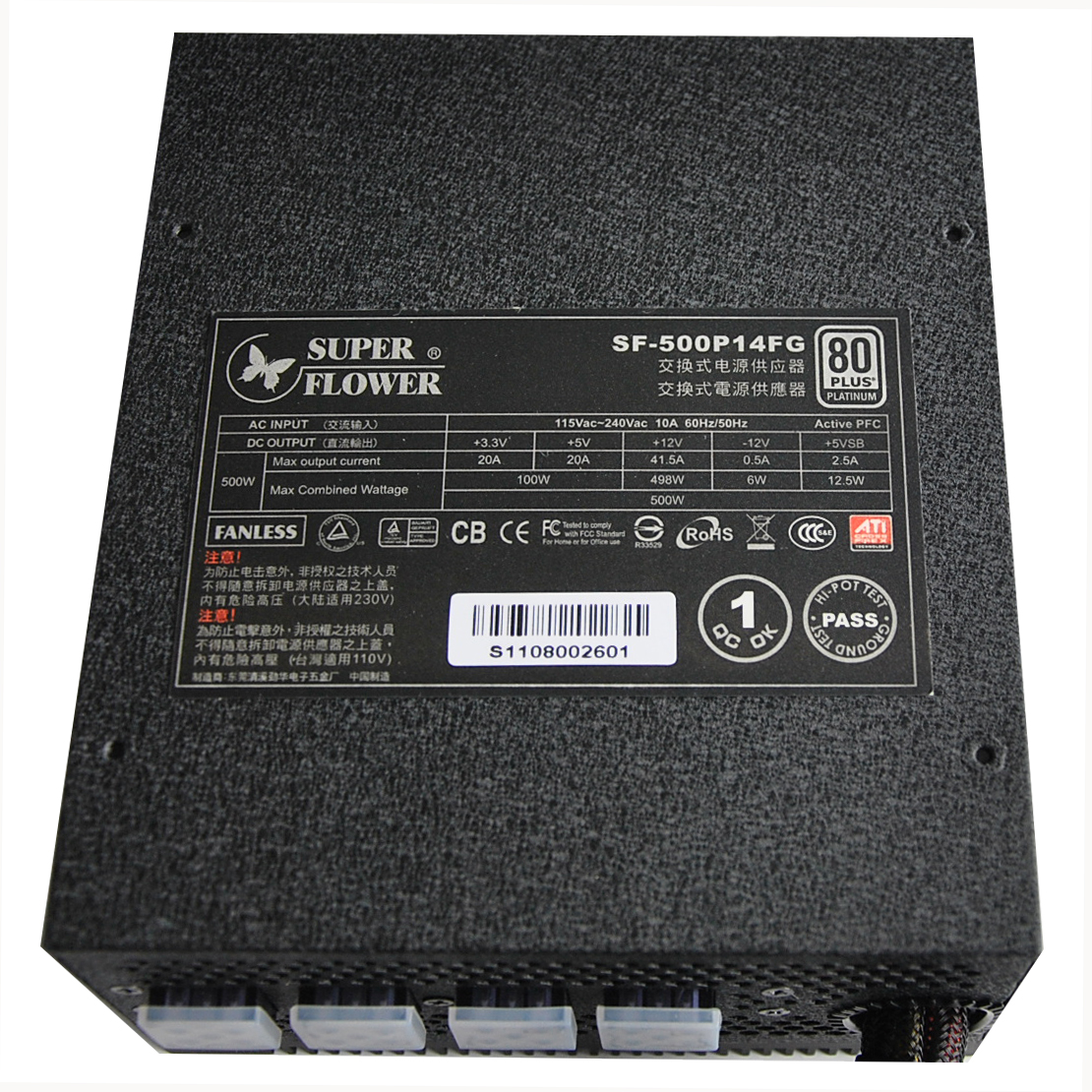

| VOLTAGE |
+3.3V
|
+5V
|
+12V
|
-12V
|
+5Vsb
|
| MAX. LOAD |
20.0A
|
20.0A
|
41.5A
|
0.5A
|
2.5A
|
Remarks:
* The total output for +5V and +3.3V is limited
to under 100W.
|
|
|
 |
|
BSMI R33529 / CE / FCC / CUL / cTUVus / CB / CCC / C-Tick
|
|
|
|
|
|
|
|
|
