Super Flower SF-650P14P ATX
Peripheral > Power Supply > SF > SF-650P14P
SF-650P14P
Supports INTEL ATX 12V ver. 2.2 Standard.
Compliance with AMD K8 (Opteron).
Extremely Silent Design.
Intelligent Temperature Control.
Gilded connectors prevent rust and bad onnections.
I/O short-circuit & overload protection integrates.
Passive PFC (230V).
650W
14cm fan
Dimensions : 150mm W x 165mm D x 85mm H

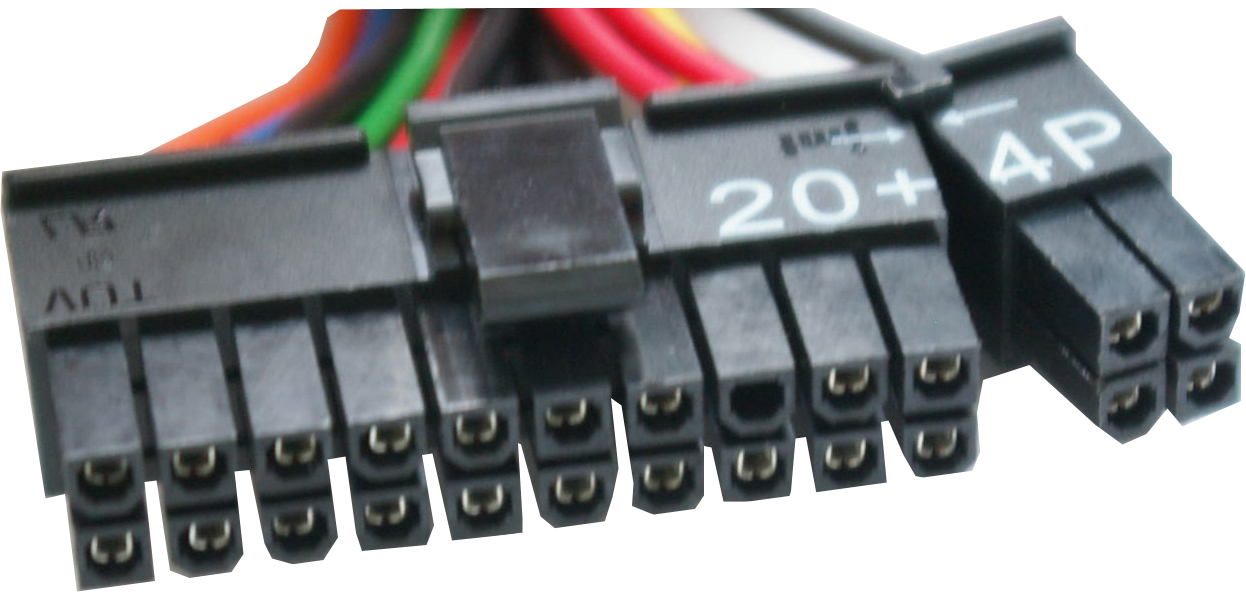

1 x 20/24PIN

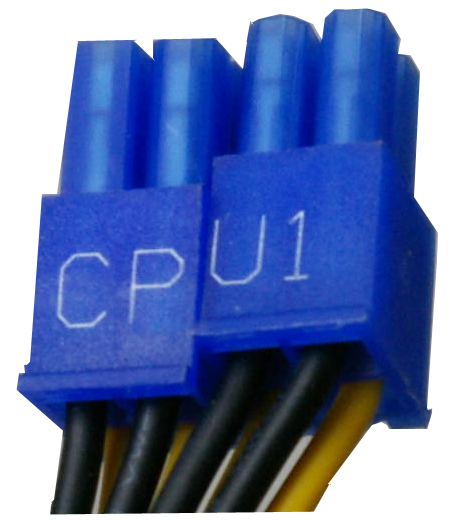

1 x 8 PIN (4+4)

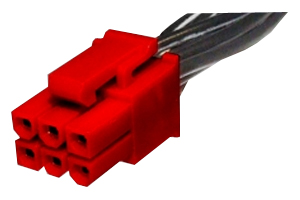

1 x 6 PIN PCI-E

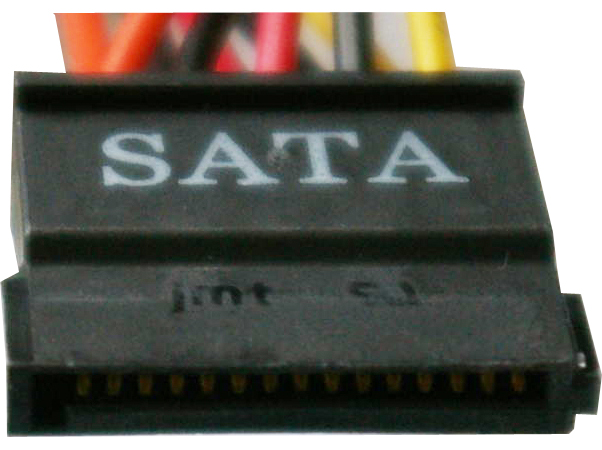

4 x SATA

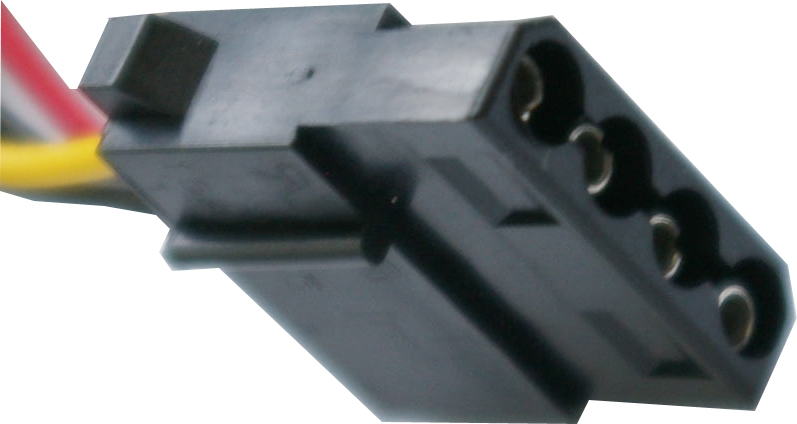

4 x Molex
1 x Floppy

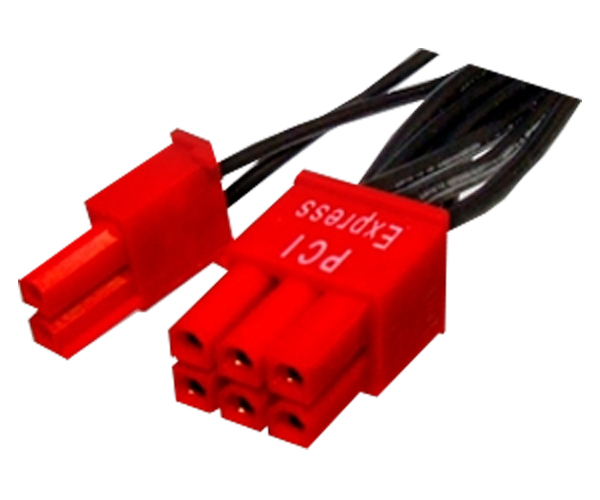

1 x 8 PIN (6+2) SLI Ready
VOLTAGE
+3.3V
+5V
+12V1
+12V2
-12V
+5Vsb
MAX. LOAD
24.0A
32.0A
21.0A
22.0A
0.6A
2.0A
CE / FCC / UL / CUL / TÜV / SEMKO / NEMKO / DEMKO / FINDO / BSMI
