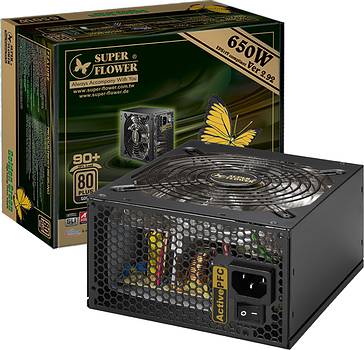

Super Flower SF-650P14XE
Peripheral > Power Supply > SF > SF-650P14XE


SF-650P14XE


Super Flower Golden Green PRO







  • Supports all Intel and AMD Dual Core and Quad core and its compatible Motherboards, ATX compliant.
  • Supports Intel Core i7-980X / Core i7 / Core i5 / Core 2 Quad / Core 2 Duo &AMD Phenom II X6 / Phenom II X4 / Phenom II X3 / Athlon 64 X2series chip set.
  • EPS 12V Ver2.92
  • Fit in with U.S.A Energy Star standards/ EuP (Energy-using Products) instructions : energy consumption during shut off status less than 1W.
  • PCI-E power plugs are setup in a 6+2 configuration for the latest graphic cards and compatible with every brand.
  • Patent 14cm Low Noise Fan, Great air flow for exceptional heat dissipation.
  • Passed 80 PLUSŪ Gold Certification, on 20% 50% 100% loading, with 87% 90% 87% Transform Efficiency.
  • Three Exclusive Patents (Taiwan, China, U.S.A, Germany, Japan patent applied)
  • Full Range Design from 100V ~ 250V. (Active PFC).
  • Patent high power and low consumption transformer / Patent dual voltage circuit with  intelligence thermal control system (Patent applying for U.S.A, Taiwan, Mainland China and other countries) (Taiwan approved)
  • Solid state Capacitance is used for longer lasting and higher reliability.
  • Extend Output Capacitance are used for higher stability and longer lasting.--All Capacitor and Capacitance are made in Japan with higher stability and longer lasting.
  • Multiple Protection Design: OVP, OPP, SCP, UPP
  • Switches can use for more then 2000 times.
  • Extend Output Capacitance are used for higher stability and longer lasting.
  • 650W Active PFC
  • 14cm High quality Japan NMB two ball-bearing fan
  • Dimensions : 150mm W x 163mm D x 86mm H

1 x 20/24PIN
1 x 8 PIN (4+4)
2 x 6 PIN PCI-E
8 x SATA

7 x Molex
1 x Floppy
2 x 8 PIN (6+2)

  • Transform Efficiency: On 20% 50% 100% loading, with 88% 90% 88% Transform Efficiency
  • AC Input: 1115Vac~ 240Vac 10A 60HZ/50Hz
  • Intel Power Design Guide: EPS Ver. 2.92
  • Outlook: Honeycomb ventilation panel, high efficiency air flow design

  • VOLTAGE
    +3.3V
    +5V
    +12V
    -12V
    +5Vsb
    MAX. LOAD
    24.0A
    22.0A
    54.0A
    0.5A
    3.0A
    Remarks:
    * The total output for +5V and +3.3V is limited to under 110W.
  • BSMI R33529 / CE / FCC / CUL / cTUVus / CB
