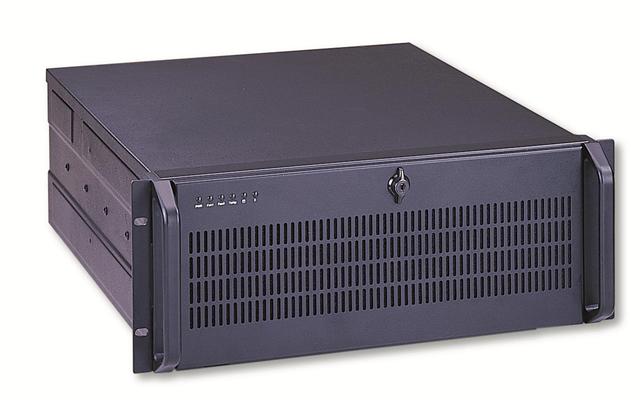

GH-411
|
|
 |
- Guanghsing 19" 4U Rackmount Case
- 7 Slots (GH-411ATXR), 14/15 Slots (GH-411SR)
- 2x USB (Optional), 1x PS/2 Ports for GH-411SR
- Power ON/OFF, System Reset
- LEDs for Power ON/OFF, HDD Activity
- Washable Air Filter
- Flexible Hold Down Card
- Single Door with 1 Thumb Twist Keylock
|
 |
| Case dimension |
350mm W x 510mm D x 177mm H |
| Mainboard configuration |
Support ATX M/B (12" x 9.6") |
| Drive configuration |
4 - 5.25"
1 - 3.5" FDD (Vertical)
1 - 3.5" HDD (Optional)
|
| System cooling fans |
1x (120mm= 90CFM) |
| Gross Weight |
17.4 kgs / 38.4 lbs |
| Optional Power Supply |
400W-700W (PS/2 Size Single up to 700W) or
MRW-5450V (Mini Redundant PSU up to 500W) (Rear
Installation), Max Depth 200mm |
| Optional Kits |
Telescopic Sliders, USB (GHA-K411)
|
|
| |
 |
|
|
|
|
|
|
Front Side
|
GH-411ATXR Top View
|
Rear Side
D-Sub Rear Windows
(Optional)
|
Rear Windows with 2x
6cm fans (Standard) |
|
|
|
|
|
|
|
Front Side
|
GH-411SR Top View
|
Rear Side
|
|
|
|
|
|
|
