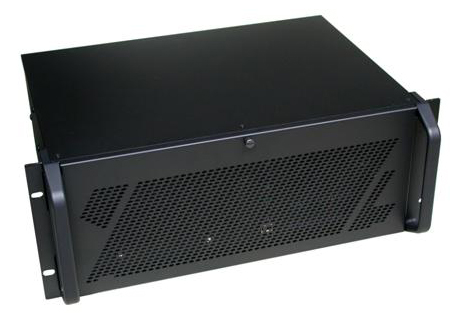

GHI-406 Guanghsing 19"/4U Rackmount |
 Rackmount Cases > GHI-406 |
|
GHI-406
|
|
 |
- Guanghsing 19" 4U Rackmount Case
- 4 Slots
- 2x USB
- Power ON/OFF, System Reset
- LEDs for Power ON/OFF, HDD Activity
- Washable Air Filter
- Single Door with 1 Thumbscrew
|
 |
| Case dimension |
483mm W x 302mm D x 177mm H |
| Motherboard configuration |
Micro ATX (Max. 9.6" x 9.6") |
| Drive configuration |
2 - 5.25"
4 - 2.5" HDD
|
| System cooling fans |
2x (92mm = 51CFM ea.), 2x 6cm (Optional) |
| Gross Weight |
12.1kgs/26.7lbs |
| Optional Power Supply |
400W-700W (PS/2 Size Single up to 700W) or
MRW-5450V (Mini Redundant PSU up to 500W) (Rear Installation) |
| Optional Kits |
Telescopic Sliders |
|
| |
 |
|
|
|
|
|
|
Front Side
|
Top View
|
Rear Side
|
|
|
|
|
|
|
