GHI-419ATXR Guanghsing 19"/4U Rackmount |
 Rackmount Cases > GHI-419 |
|
GHI-419
|
|
 |

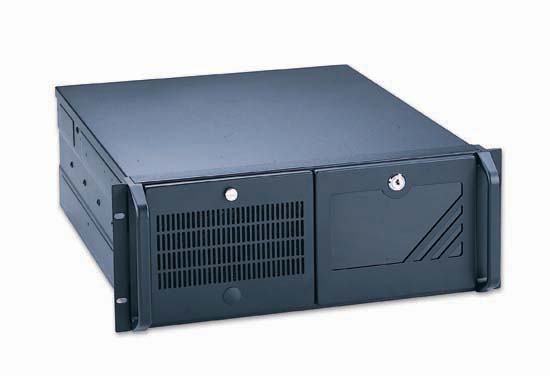

- Guanghsing 19" 4U Rackmount Case
- 7 Slots (GHI-419ATXR), 14/15 Slots (GHI-419SR)
- 2x USB (Optional), 1x PS/2 Ports for GHI-419SR
- Power ON/OFF, System Reset
- LEDs for Power ON/OFF, HDD Activity
- Washable Air Filter
- Flexible Hold Down Card
- Two Doors with Keylock and Thumbscrews
|
 |
| Case dimension |
483mm W x 510mm D x 177mm H |
| Motherboard configuration |
EATX (Max. 12" x 13") SSI EEB 3.0 |
| Drive configuration |
2 - 5.25"
1 - 3.5" FDD
5 - 3.5" HDD
1 - 3.5" HDD (Optional)
|
| System cooling fans |
2x (90mm = 51CFM ea.), 2x 6cm (Optional) |
| Gross Weight |
17.8kgs/39.3lbs |
| Optional Power Supply |
400W-700W (PS/2 Size Single up to 700W) or
MRW-5450V (Mini Redundant PSU up to 500W) (Rear Installation), Max. Depth 300mm |
| Optional Kits |
Telescopic Sliders,
HDD Bracket,
USB |
|
| |
 |
|
|
|
|
|
|
Front Side
|
GHI-419ATXR Top View
|
Rear Side
|
|
|
|
|
|
|
|
|
Front Side
|
GHI-419SR Top View
|
Rear Side
|
|
|
|
|
