RM417
|
|
|

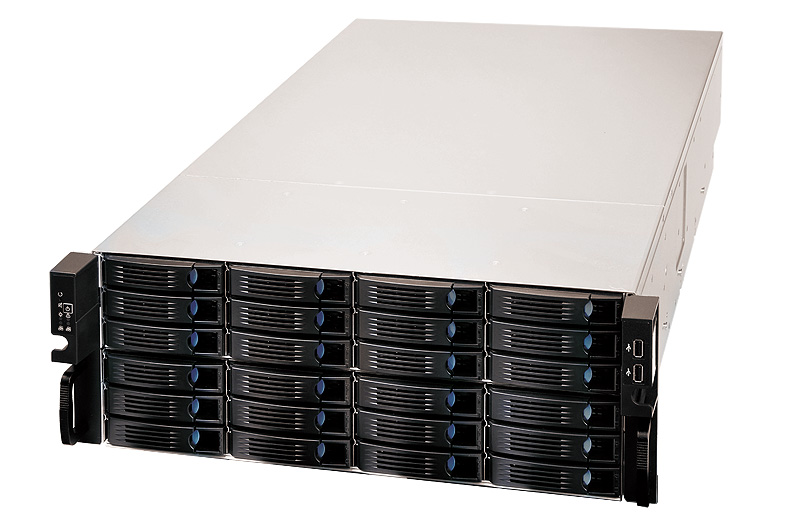

- Chenbro 19" 4U Modular Double Access Storage Server Chassis
- Modulardesign auf 2.5", 3.5" Laufwerkskäfig und M/B Platte
- Festplatteninstallation an Vorder- und Rückseite
- Vielseitige Konfiguration durch verschiedene Modularkäfige möglich
|
|
Abmessungen |
432mm B x 698mm T x 176mm H |
Formfaktor |
EATX (Max. 12" x 13") SSI EEB 3.0 |
Prozessor |
Intel / AMD DP Quad |
Support Backplane |
6Gb/s Mini-SAS w/Expander |
Sicherheit |
Intrusion Switch |
Laufwerkseinschübe |
36 - 3.5" Hot Swap HDD (24-bay plus 12-bay HDD cage),
3.5", 12-Bay, 6Gb/s Mini-SAS BP w/Expander oder
72 - 2.5" Hot Swap HDD (3pcs. 24-bay HDD cage) 2.5", 24-Bay, 6Gb/s Mini-SAS BP w/Expander |
Gehäusematerial |
SGCC |
Metalldicke |
1.2mm |
Lüfter |
6 x 80mm T38, PWM; Hot Swap, 2 x 40mm (Option) |
Expansion Slot |
6 Low Profile Slot |
Frontblende |
Power On/Off, System Reset, Alarm Reset, Power LED,
1 x HDD Activity, 2 x LAN Activity LED, Event LED, 2 x USB 2.0 |
Netto-/Bruttogewicht |
42kg/43kg |
Optionales Netzteil |
2U oder 1+1 Redundant |
Optionen |
SFF-8087 to SFF-8087, 40mm Lüfter |
|
|
|
|
|
|
|
Vorderseite
|
Topansicht
|
Rückseite
|
24-Bay 3.5" HDD Cage, 6Gb/s backplane w/Expander on board
|
|
|
|
|
Control und Display
|
2 x USB2.0
|
Modular M/B carrier
|
|
|
|
|
|
|
|
|
