RM216 Chenbro 2U Open-bay Server |
 Rackmount Cases > RM216 |
|

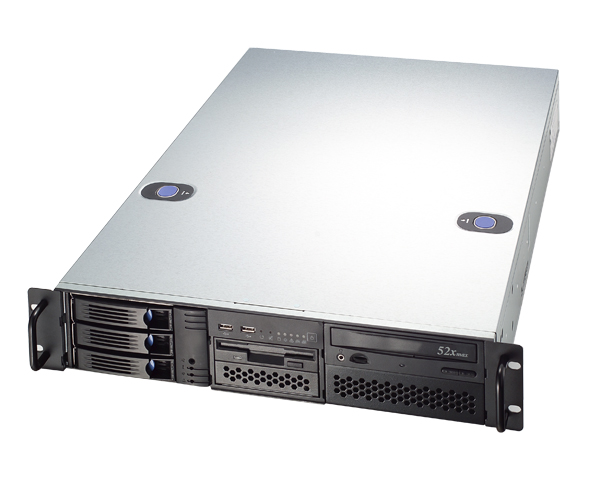

RM216
|
|
 |
- Chenbro 2U Open-bay Server Chassis
- Support motherboard size up to 12" x 13"
- Middle non hot-swap fan modules
- Support 3-slot riser and 6-slot low profile rear windows
- Tool-less design on 5.25" device installation
- Support 2U single and 1+1 redundant PSU
|
 |
| Case dimension |
430mm W x 660mm D x 88mm H |
| Motherboard configuration |
EATX (Max. 12" x 13") SSI EEB 3.0 |
| Processor |
Intel / AMD DP Quad |
| Security |
Intrusion Switch |
| Drive configuration |
4 x 5.25"
2 x 3.5" |
| Metal Material |
SGCC |
| Metal Thickness |
1.2mm |
| System cooling fans |
4 x 80mm (T=32mm), 2 x 40mm (T=28mm) (option) |
| Rear Window |
6 Low Profile Slot or 3 x Full Height |
| Front Panel |
Power On/Off, System Reset, Alarm Reset, Power LED,
1 x HDD Activity, 2 x LAN Activity LED, 1 x Fan Failure & Overhead, 2 x USB 2.0 |
| Net Weight/Gross Weight |
8.8kg/12.7kg |
| Optional Power Supply |
2U Single
P2G-6510P or 1+1 Redundant C2W-5620V |
| Optional Kits |
SK32303 (3 x 3.5" HDD Module with 6Gb/s SATA backplane),
SK41101 (1 x ODD bay to 1 x internal 3.5" HDD/FDD bay),
SK41202 (1 x ODD bay to 1 x slim ODD bay + 1 x internal 3.5" HDD/FDD bay),
26" Sliding Rail
|
|
| |
 |
|
|
|
|
|
|
Front Side
|
Top View
|
Rear Side
|
Rear Windows
|
|
|
|
|
|
|
Screwless fan
|
|
|
|
|
|
|
|
|
|
|
|
|
|
