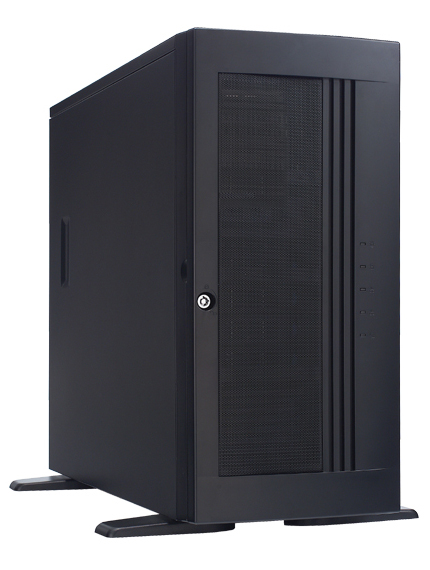

SR10566 Chenbro Server Chassis
Server Cases > SR10566


General Purpose Server Chassis


  • Online Catalog
  • Manual
    • Support up to 12"x13" M/B
    • 3.5" 4-Bay HDD cages with 6Gb/s SATA or mini-SAS backplane
    • Tool-less installation on bezel, HDD cage, side cover and fans
    • Rackable by slide rail- SR10566
    Case dimension 198mm W x 533mm D x 425mm H
    Motherboard configuration ATX / Extended ATX, EEB
    Processor Intel / AMD DP Quad
    Security Intrusion Switch, Kensington Lock, Keylock on front door
    Drive configuration
  • 3 - 5.25" exposed
  • 4 - 3.5" HDD Cage (Optional)
  • Metal Material SECC
    Plastic Material Type ABS-HB
    Metal Thickness 0.8mm
    System cooling fans 1 x 12cm PWM for rear-mounted (built-in)
    1 x 8 or 9cm fan for front-mounted
    Expansion Slot 7 (5 x full length + 2 x half length)
    Front Panel Power On/Off, System Reset, Alarm Mute, Power LED, 1 x HDD Activity, 2 x LAN Activity LED, 1 x Event Warning, 2 x USB 2.0
    Net Weight/Gross Weight 9kg/11.0kg
    Optional Power Supply 450-1000W (PS/2) or MRW-5450V (Mini Redundant)
    Optional Kits 84H220910-062 (HDD Cage, 3.5" 4-Bay, Non-Hotswap), 84H220910-078 (HDD Cage, 3.5" 4-Bay, w/6Gb/s Mini-SAS) 84H220910-079 (HDD Cage, 3.5" 4-Bay, w/6Gb/s SATA ), SK33502 (3 x ODD bays to 5 x 3.5" hot-swap HDD bays), SK32303 (2 x ODD bays to 3 x 3.5" hot-swap HDD bays), SR84H210510-004 Rackmount Handles, 26" Sliding Rail
    Front Side
    Rear Side
    Side View
    Front Side with HDD Cage
    Screwless Card Retaine
    120mm PWM fan
    Removable HDD Cage
